DENELEC DM-800 MARINE ECDIS

The Danelec DM-800 is an IMO-compliant ECDIS designed to provide mariners with a stable and intuitive platform for route planning and monitoring. Unlike many Windows-based systems, the DM-800 runs on a dedicated Linux platform, which significantly reduces the risk of virus infections and system crashes. It features a high-resolution display and a dedicated keyboard with integrated trackball and "Hot-Keys" for instant access to critical functions like "Standard Display" and "Man Overboard" (MOB).

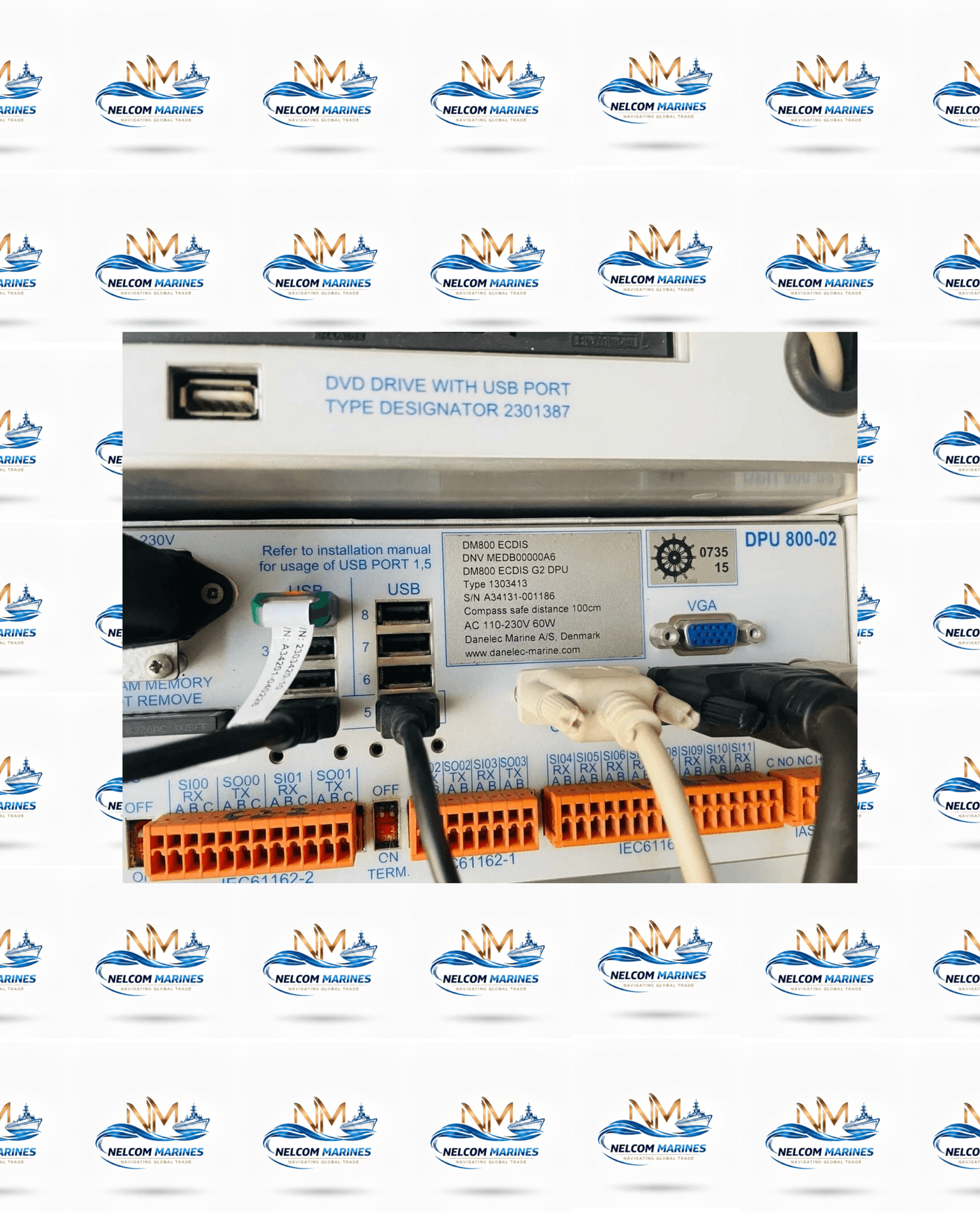

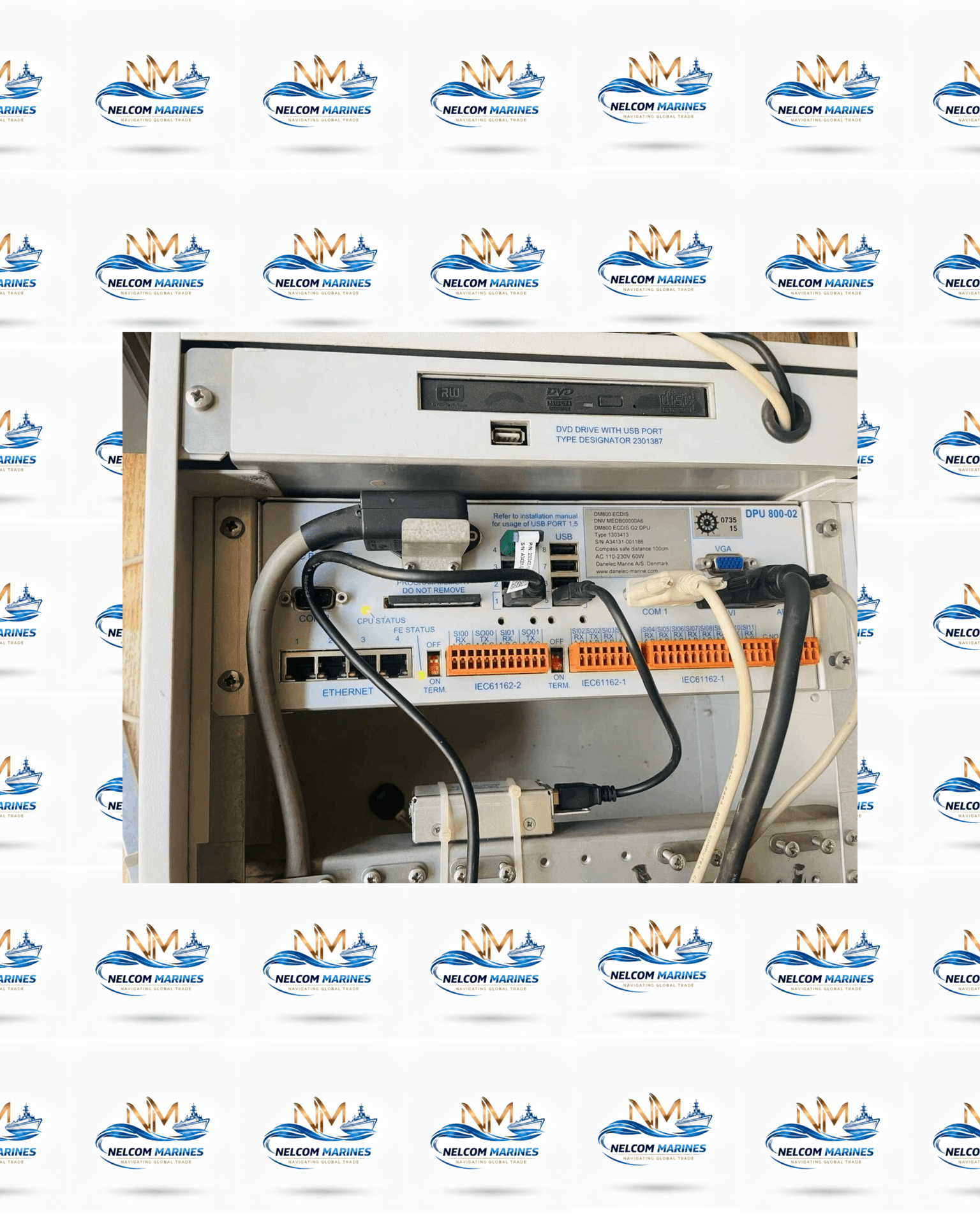

A standout feature of the DM-800 is its modular design; the main processor unit is separate from the display, allowing for flexible installation in space-constrained bridges. It is fully compatible with C-MAP and ADMIRALTY Vector Chart Service (AVCS), ensuring that global chart coverage is always available. Its reputation for "simplified navigation" makes it a preferred system for crews transitioning from paper charts to digital navigation.

TECHNICAL SPECIFICATIONS

-- Model: DM-800 ECDIS

-- Manufacturer: Danelec Marine A/S (Denmark)

-- Operating System: Linux (Proprietary Stable Build)

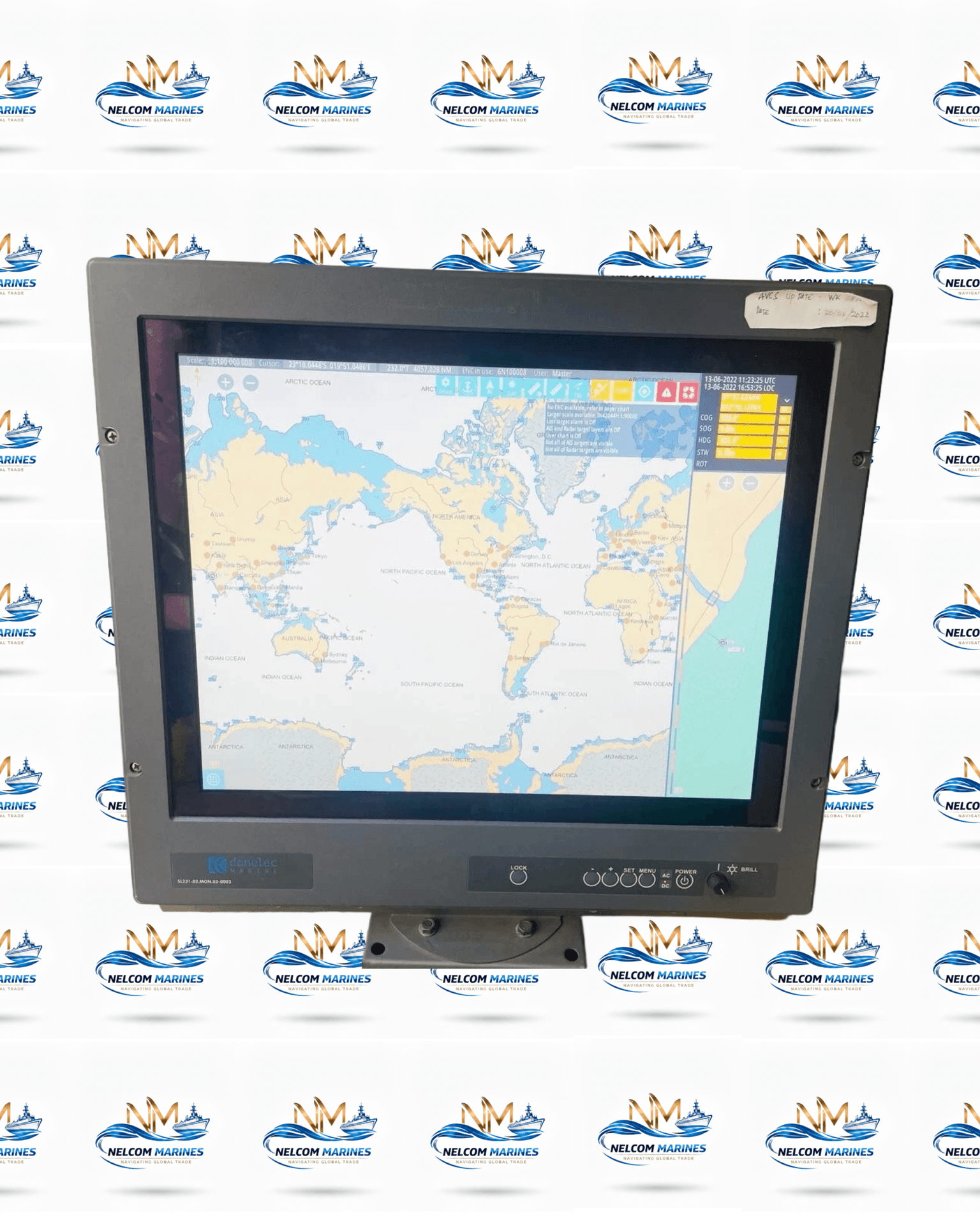

-- Display Size: 19-inch or 23-inch High-Resolution TFT LCD

-- Supply Voltage: 110V/230V AC (with 24V DC Auto-Switching Backup)

-- Processor: High-speed Industrial Marine PC

-- Chart Formats: S-57 (ENC), S-63 (Encrypted), C-MAP CM-93

-- Interfaces: 8x NMEA 0183 Inputs, 4x NMEA 0183 Outputs, Ethernet (IEC 61162-450)

-- Data Storage: Solid State Drive (SSD) for enhanced shock resistance

-- Operating Temperature: -15°C to +55°C

-- Compliance: IMO MSC.232(82), IEC 61174 Ed. 4, IEC 62288

KEY FEATURES & APPLICATIONS

-- Cyber-Secure Linux Platform: Provides a highly stable environment that is immune to common PC viruses, ensuring the navigation system remains operational in all conditions.

-- Advanced Route Planning: Features comprehensive "Check Route" functionality that automatically scans the intended path for navigational hazards, shallow water, and restricted areas.

-- Dual ECDIS Redundancy: Can be configured in a "Master/Backup" setup to allow for paperless navigation, meeting all SOLAS requirements for primary and secondary means of navigation.

-- Seamless Radar Overlay: Capable of overlaying ARPA radar targets and AIS data directly onto the chart, providing a complete tactical picture for the Officer of the Watch.

-- Simplified Chart Handling: Uses a straightforward USB or DVD update process for ENC cells, with built-in tools for managing permits and licenses.

-- Night Vision Modes: Includes multiple color palettes (Day, Dusk, Night) to preserve the bridge team’s night vision while maintaining clear chart readability.

TYPICAL CONDITION (USED/REFURBISHED)

Our refurbished DM-800 units from the Alang yards undergo extensive stress testing. We verify the health of the industrial SSD and ensure the cooling fans in the processor unit are functioning efficiently. The trackball and keyboard are thoroughly cleaned and tested for tactile precision. We also perform a full "Factory Reset" and update the Linux kernel to the latest stable version compatible with the hardware, ensuring the system is ready for the latest S-63 1.2 chart encryption standards.

COMPATIBLE BRAND MODELS:Danelec DM-800, Danelec DM-700, Danelec DM-100 VDR, Furuno FMD-3200, Furuno FMD-3300, JRC JAN-901B, JRC JAN-701B, Transas Navi-Sailor 4000, Sperry Marine VisionMaster FT, Simrad E5024.
