PRE OWNED FURUNO FCV-1150 FURUNO FCV-1150 MARINE ECHO SOUNDER

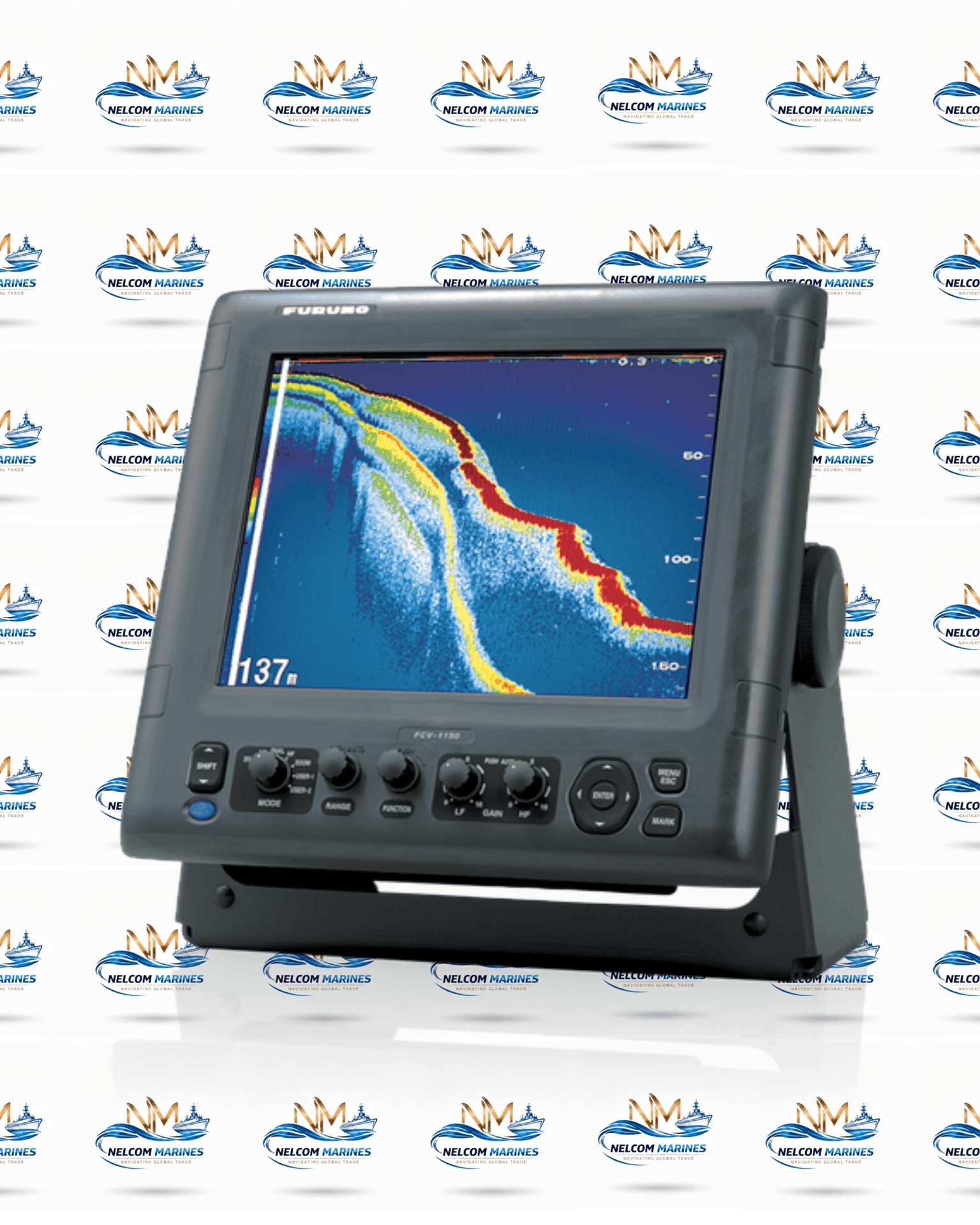

The Furuno FCV-1150 features a 12.1-inch high-definition color TFT LCD that provides a crystal-clear view of underwater targets. It is built on a highly advanced digital platform that allows for incredible target separation, even when fish are located very close to the seabed. The system's standout feature is its Free Synthesis (FS) transceiver, which allows the operator to select any two operating frequencies between 28 and 200 kHz, making it compatible with almost any existing transducer.

The FCV-1150 utilizes the Furuno Digital Filter to adjust gain, STC, and output power automatically, ensuring that the screen is free from noise and clutter. This is especially useful for identifying specific fish species and detecting individual fish within dense schools. Its rugged, waterproof design and intuitive control panel—complete with dedicated rotary knobs—ensure reliable operation in the most demanding maritime environments.

TECHNICAL SPECIFICATIONS

-- Model: FCV-1150

-- Manufacturer: Furuno Electric Co., Ltd. (Japan)

-- Display: 12.1-inch Color TFT LCD (Bonded Glass)

-- Resolution: 800 x 600 Pixels (SVGA)

-- Frequency: Dual Frequency (Free Synthesis from 28 to 200 kHz)

-- Output Power: 1 kW, 2 kW, or 3 kW (Depending on transducer)

-- Range Scales: 5 to 3,000 meters

-- Display Modes: Single (HF/LF), Dual, Bottom-Lock, Bottom Zoom, Marker Zoom, A-Scope

-- Supply Voltage: 12-24V DC

-- Power Consumption: 50 W (Maximum)

-- Interfaces: NMEA 0183 (Input/Output), Video Output (DVI-D)

-- Waterproofing: IP55 (Front Panel)

-- Advanced Features: White Line, Target Echo Enhancement, Bottom Discrimination

KEY FEATURES & APPLICATIONS

-- Free Synthesis Transceiver: Offers the flexibility to "fine-tune" frequencies to match the specific resonant frequency of your transducer, optimizing performance for targeted species.

-- High-Speed Transmission: The FCV-1150 boasts an increased transmission rate for shallow water, providing a high-definition image with excellent detail of bottom structures.

-- White Edge / White Line: These features provide a clear distinction between the seabed and bottom-lying fish, preventing valuable targets from being hidden by the bottom echo.

-- DVI-D Video Output: Allows for the connection of an external monitor, enabling the bridge team or fishing crew to view the sounding data on a secondary large-screen display.

-- Post-Processing Gain Control: Allows the operator to adjust the gain on previously recorded echoes still visible on the screen, helping to identify missed targets without losing new data.

-- Bottom Discrimination: Analyzes the echo returned from the seabed and categorizes it into four types: Mud, Sand, Gravel, or Rock (requires a compatible transducer).

TYPICAL CONDITION (USED/REFURBISHED)

Our refurbished FCV-1150 units from Alang are put through an exhaustive performance audit. We test the bonded LCD for clarity and ensure there is no internal fogging or pixel loss. The FS Transceiver board is verified for frequency accuracy and power output stability across the full 28-200 kHz range. We also test the NMEA data ports and the DVI-D output for signal integrity. Each unit is delivered with a factory-reset configuration and a comprehensive test report from our Bhavnagar technical team.

COMPATIBLE BRAND MODELS:

Furuno FCV-1150, Furuno FCV-1100, Furuno FCV-1200, Furuno FCV-1900, Furuno FCV-295, JRC JFE-680, JRC JFE-380, Koden CVS-1410, Koden CVS-FX1, Simrad ES80, Raymarine RV-400.
