PRE OWNED FURUNO GP-150 FURUNO GP-150 MARINE GPS

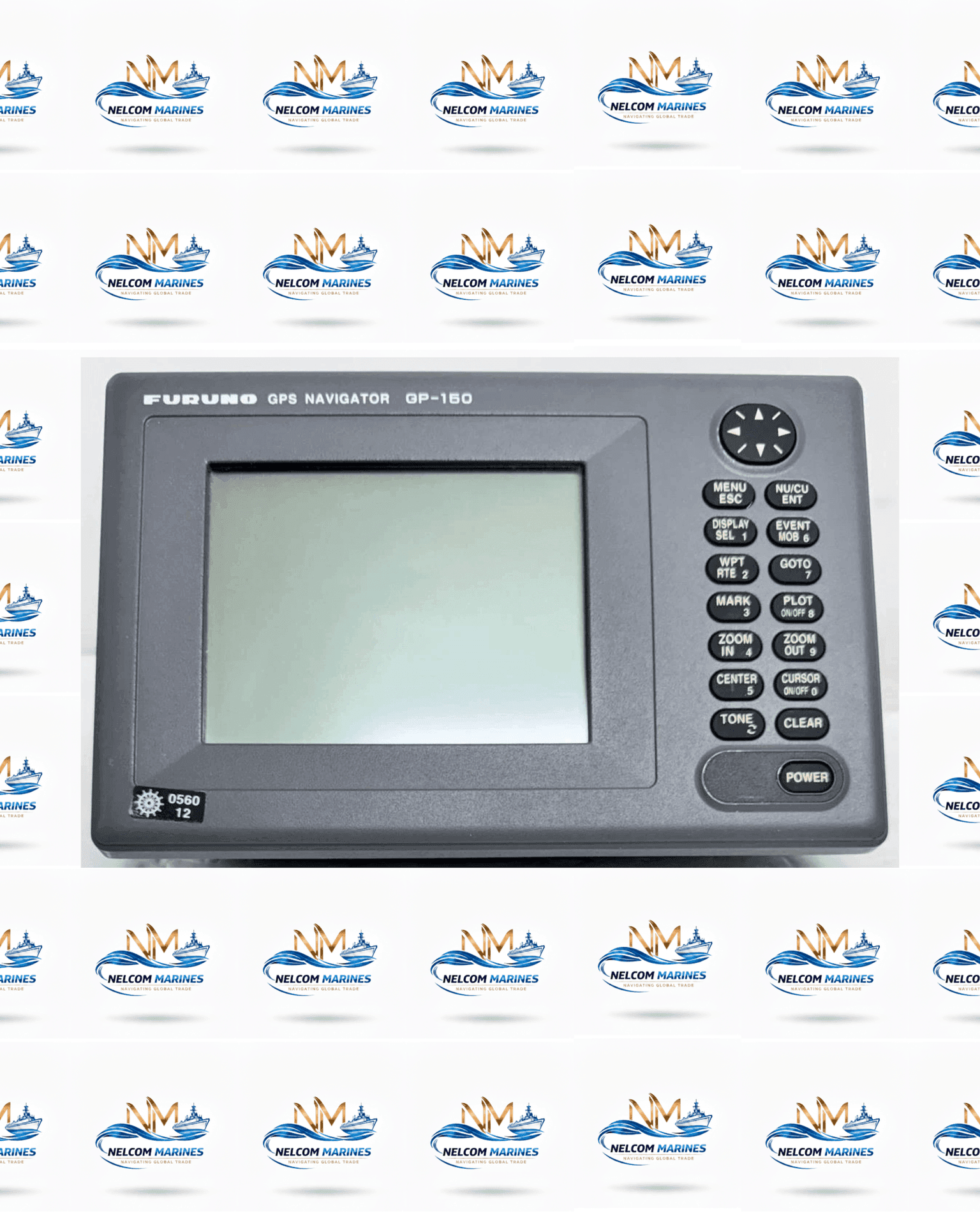

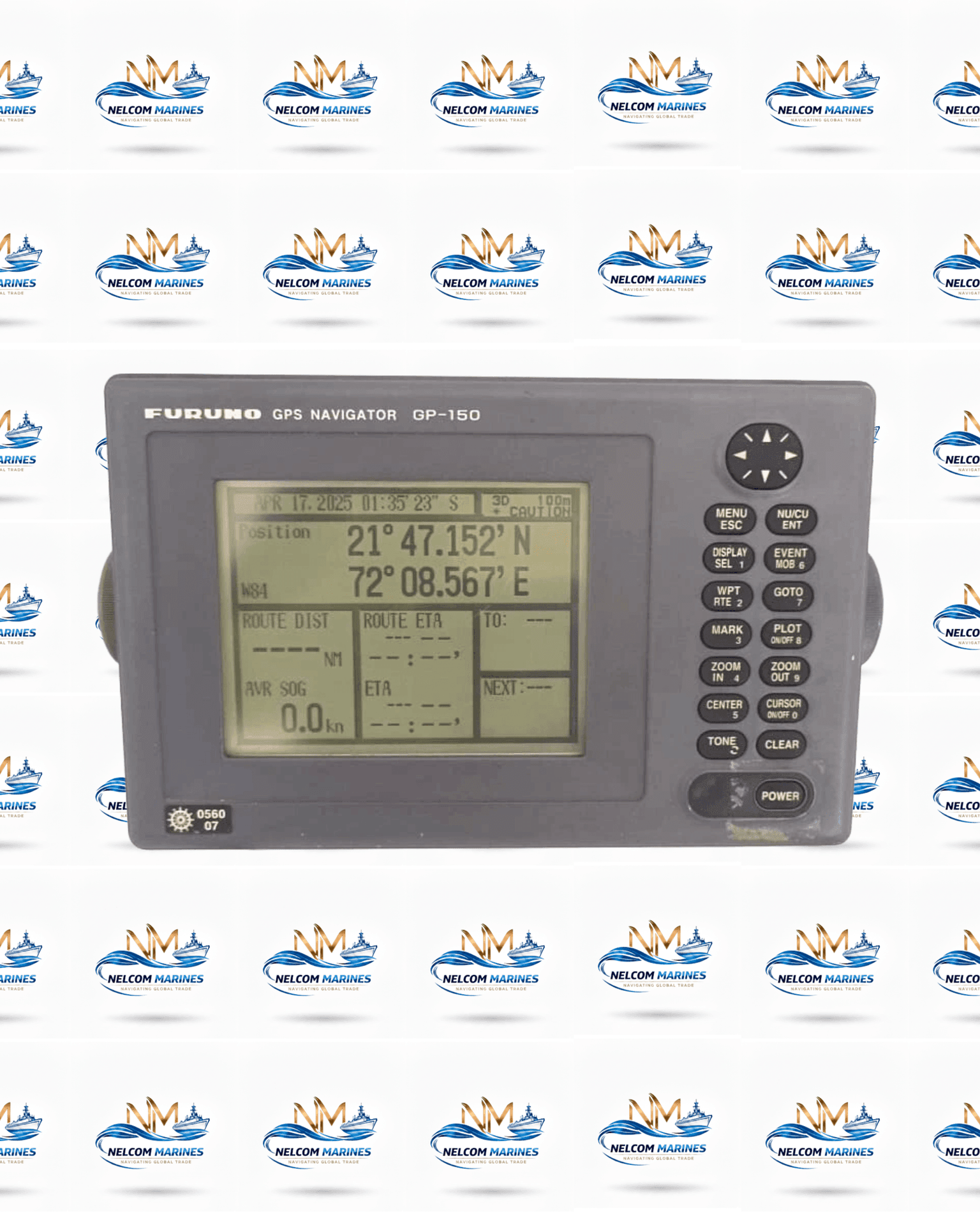

The Furuno GP-150 is a professional-grade GPS navigator featuring a high-contrast 6-inch silver bright LCD. It is fully compliant with IMO performance standards and is widely used as the primary position sensor for integrated bridge systems. The system is designed for maximum redundancy, allowing for the connection of two GPS antennas to ensure continuous position data even if one sensor is obstructed or fails.

The GP-32 and GP-39 focus on individual navigation, but the GP-150 is built for heavy-duty networking. It provides high-accuracy position, speed (SOG), and heading (COG) data to multiple bridge components, including Radars, ECDIS, Autopilots, and Voyage Data Recorders (VDR). Its interface is optimized for professional mariners, with dedicated function keys for rapid access to MOB (Man Overboard) marking and waypoint navigation.

TECHNICAL SPECIFICATIONS

-- Model: GP-150

-- Manufacturer: Furuno Electric Co., Ltd. (Japan)

-- Display: 6-inch Monochrome Silver Bright LCD (STN)

-- Resolution: 320 x 240 Pixels

-- Receiver Type: 12-channel parallel, WAAS/SBAS ready

-- Position Accuracy: GPS: 10m, WAAS: 3m, DGPS: 5m (with optional internal/external receiver)

-- Storage: 2,000 Waypoints, 2,000 Track Points, 100 Routes (up to 30 waypoints each)

-- Interfaces: 5x NMEA 0183 Outputs, 1x NMEA 0183 Input, 1x RS-232C, DGPS Port

-- Supply Voltage: 12V to 24V DC

-- Power Consumption: 0.8 A (at 12V)

-- Waterproofing: IPX5 (Display Unit)

-- Alarms: Arrival, Anchor Watch, XTE, Speed, Time, WAAS, DGPS

KEY FEATURES & APPLICATIONS

-- SOLAS & IMO Compliance: Meets the strict requirements for carriage on international merchant vessels, ensuring full legality for global trade.

-- Dual Sensor Input: Can process data from two independent GPS antennas (GPA-017S), providing a failsafe mechanism for critical deep-sea navigation.

-- Advanced DGPS Ready: Features a dedicated port for differential GPS correction, significantly enhancing position accuracy for survey work or narrow channel transit.

-- Comprehensive Bridge Integration: Equipped with five NMEA 0183 output ports, allowing it to feed position data to the Radar, AIS, ECDIS, DSC VHF, and VDR simultaneously.

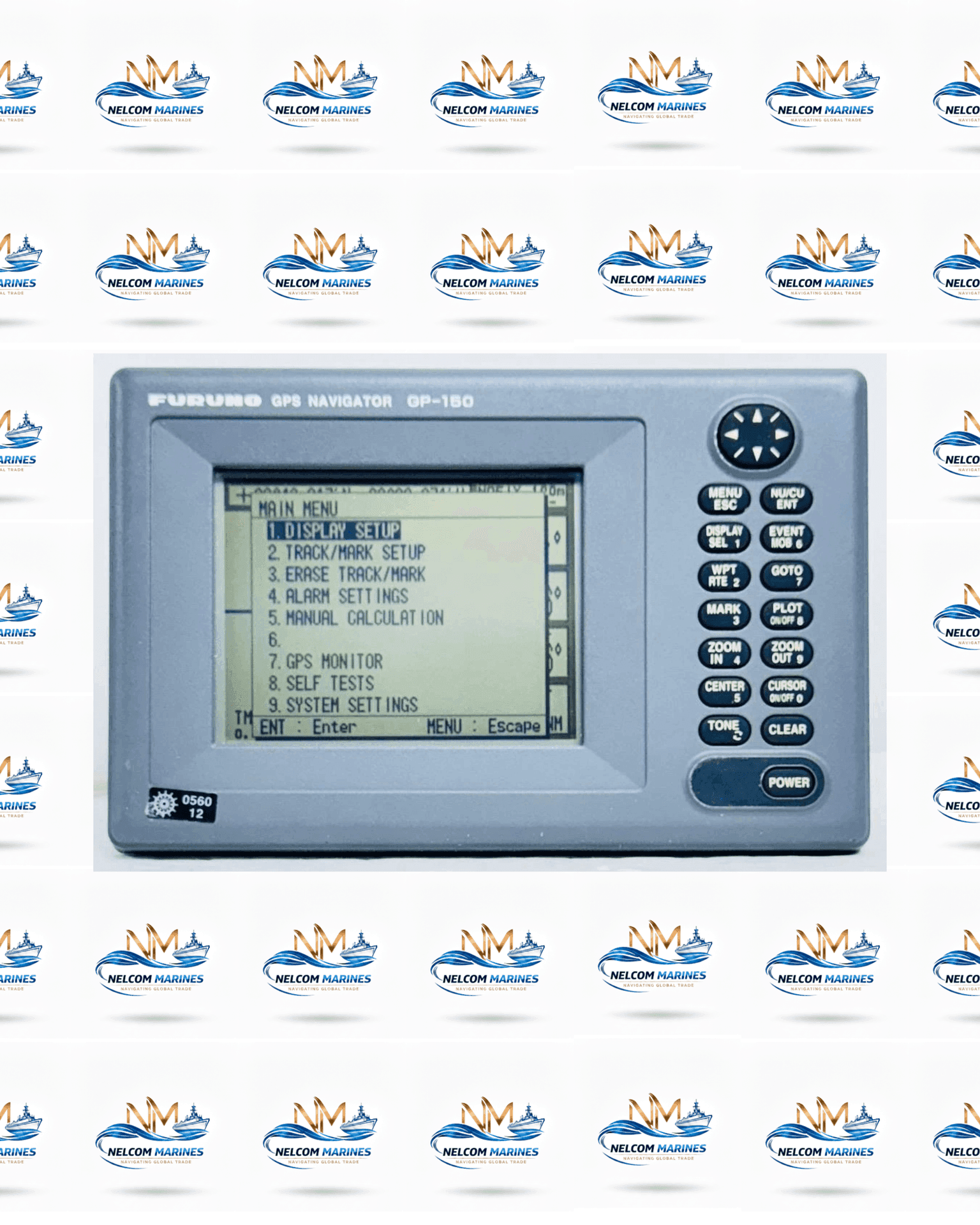

-- Detailed Satellite Monitoring: Provides a graphical view of the satellite constellation and signal strength, allowing the officer of the watch to verify GPS health at a glance.

-- Tactile "Hot Keys": Includes dedicated buttons for common tasks such as "MARK" and "GOTO," ensuring the unit can be operated quickly during emergencies.

TYPICAL CONDITION (USED/REFURBISHED)

Our refurbished GP-150 units from the Alang recycling yards undergo a meticulous technical overhaul. We pay special attention to the LCD contrast and backlight, ensuring the display is sharp in both high-sunlight and night-bridge conditions. The Internal Backup Battery is replaced to protect stored routes and waypoints. We also verify the NMEA Output Buffer, ensuring all five ports are broadcasting stable data strings without latency. Every unit is factory-reset and provided with a detailed performance report from our Bhavnagar facility.

COMPATIBLE BRAND MODELS:

Furuno GP-150, Furuno GP-170, Furuno GP-90, Furuno GP-32, Furuno GP-39, JRC JNAV-500, JRC JAN-9201, Koden KGP-920, Sperry Marine NAVIGAT, Tokyo Keiki G-1.
