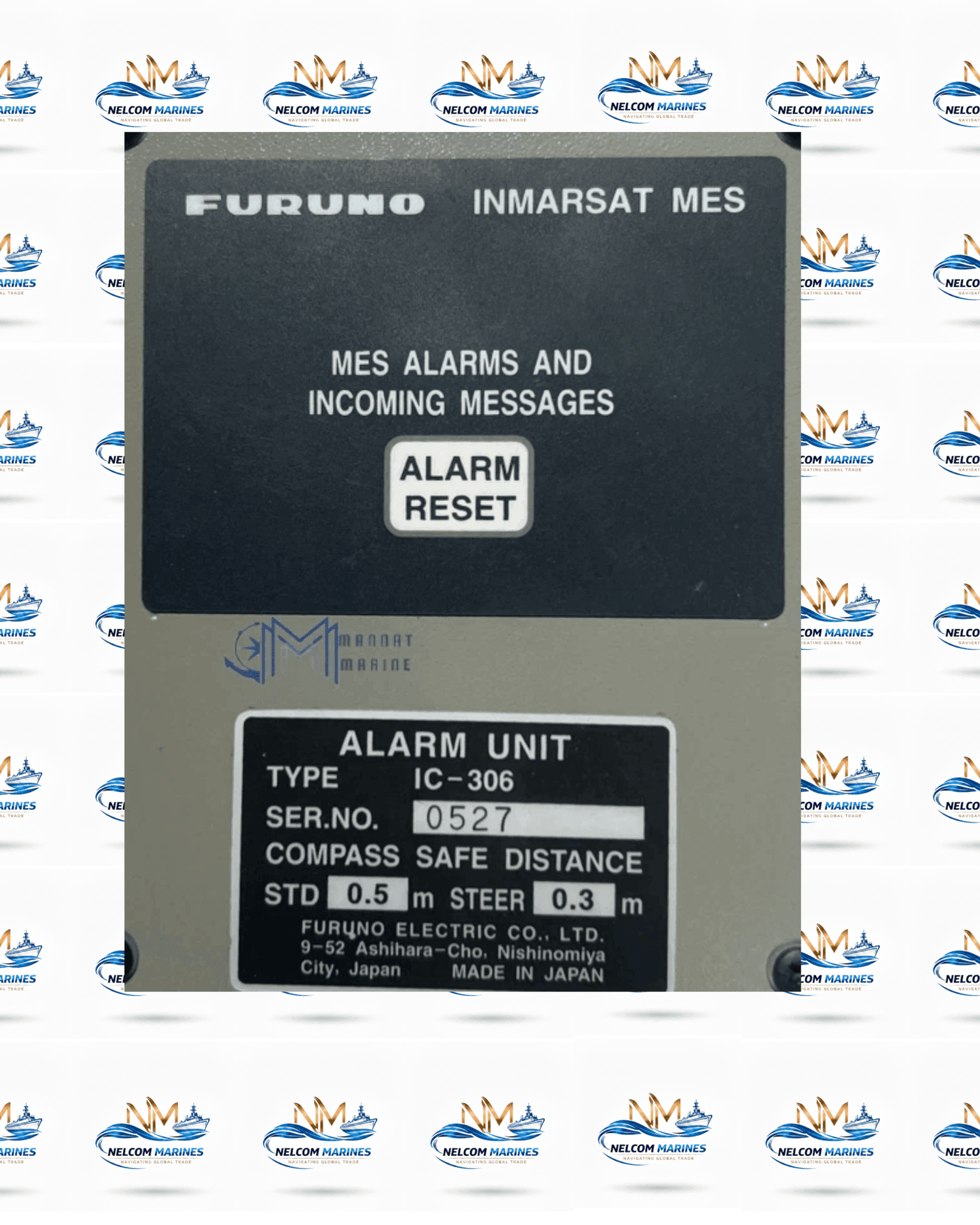

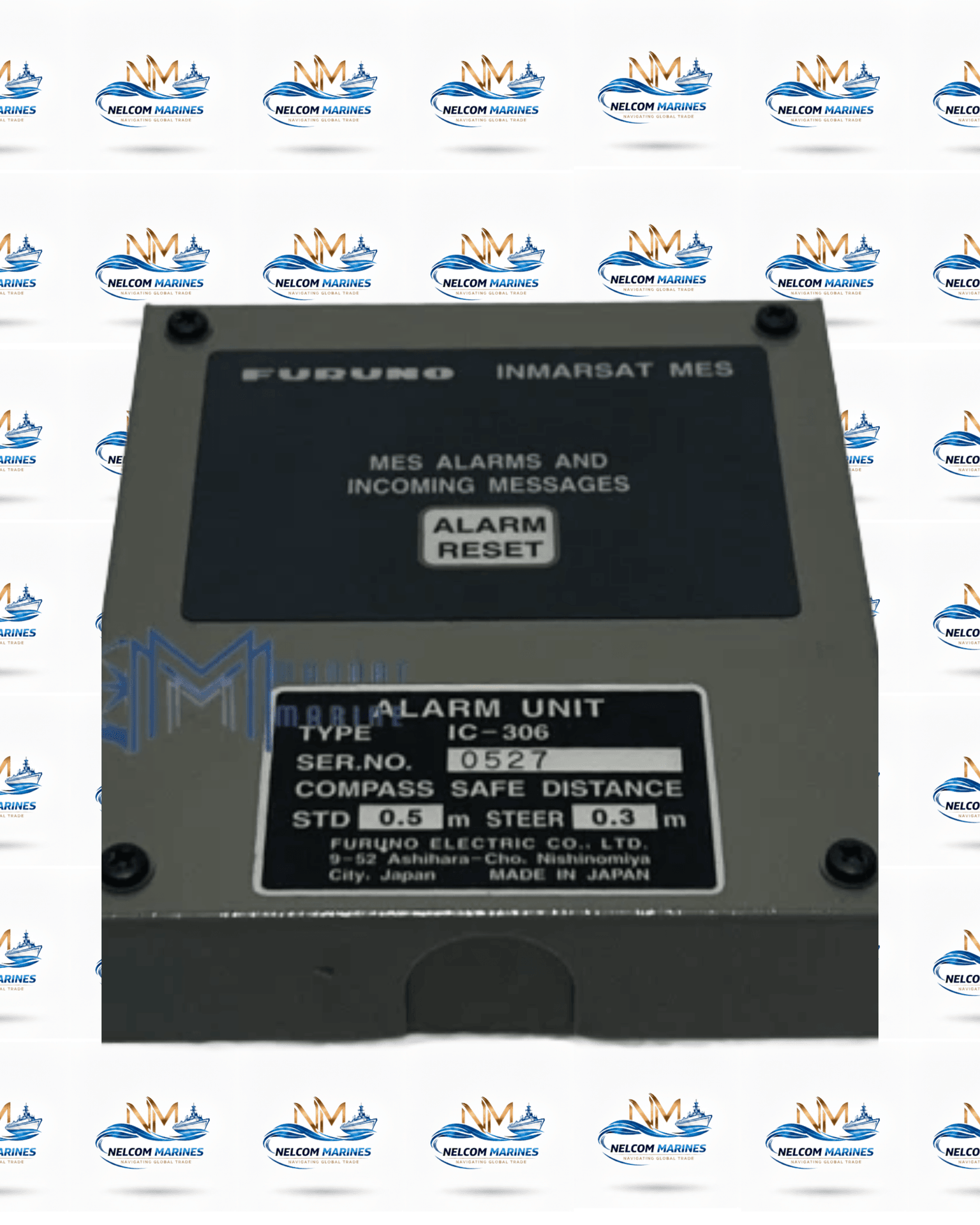

PRE OWNED FURUNO IC-306 FURUNO IC-306 SWITCH

PRODUCT OVERVIEW

The Furuno IC-306 is a compact, panel-mount alarm unit designed to interface with Furuno’s range of Inmarsat-C Mobile Earth Stations. Its primary function is to notify the bridge officers of incoming telexes, e-mails, or distress-related messages.

Equipped with a high-visibility LED indicator and an internal buzzer, the IC-306 ensures that important satellite notifications are recognized even in high-noise environments. The front panel features a dedicated "ALARM RESET" button, allowing the user to silence the audio alert and acknowledge the notification directly from the bridge console.

TECHNICAL SPECIFICATIONS

-- Model: Furuno IC-306

-- Device Type: Alarm / Notification Unit

-- Compatibility: FELCOM 15, FELCOM 16, FELCOM 18, FELCOM 19, FELCOM 20

-- Input Voltage: 12-24 VDC (Powered via Terminal Unit)

-- Controls: ALARM RESET Button (Push-to-Reset)

-- Alert Types: Pulsed Audio (Buzzer) and Flashing LED Lamp

-- Compass Safe Distance: Standard: 0.5m | Steering: 0.3m

-- Weight: 0.33 kg (Approx. 340 grams)

-- Mounting: Flush mount or Bulkhead mount

-- Construction: Marine-grade plastic housing (IP22 rated for bridge use)

KEY FEATURES & APPLICATIONS

-- Incoming Call Notification: Automatically triggers when a new telex, fax, or e-mail is received by the Inmarsat-C terminal.

-- System Error Alerting: Provides immediate audible feedback if the satellite terminal encounters a technical failure or loses its satellite lock.

-- GMDSS Support: Functions as the secondary alarm indicator to ensure compliance with bridge watchkeeping standards for satellite safety services.

-- Compact Integration: Its small 120mm x 100mm footprint allows it to be installed easily into crowded bridge consoles alongside radars and ECDIS displays.

-- Simplified Wiring: Connects to the main communication processor via a standard multi-core cable, making it a "plug-and-play" accessory.

-- Essential for Ship Security: Often used in conjunction with the SSAS (Ship Security Alert System) to provide local status alerts for the security terminal.

TYPICAL CONDITION (USED/REFURBISHED)

As a common item in the Bhavnagar maritime market, the IC-306 is valued for its long-term reliability. During the refurbishing process, each unit is tested to ensure the "ALARM RESET" switch is responsive and that the buzzer meets the required decibel levels. We also inspect the LED lamp for brightness and verify that the rear terminal blocks are clean and free of salt-air oxidation.

COMPATIBLE BRAND MODELS:Furuno (FELCOM 15, FELCOM 16, FELCOM 18, FELCOM 19, FELCOM 20, IC-305 Distress Alert Unit, IC-307 SSAS Button, IC-318 Junction Box, IC-218 Terminal), JRC (NQE-1143, NCM-879), Thrane & Thrane / Sailor (TT-3005M, TT-3606E), Cobham (Sailor 6110, 6194), Samyung (SN-100), JMC (NT-2000), Highlander (HLD-600).
