PRE OWNED FURUNO NAVIPILOT 711C FURUNO NAVIPILOT 711C MARINE AUTOPILOT

PRODUCT OVERVIEW

The NAVpilot-711C is an intelligent, self-learning autopilot that dynamically adjusts its steering parameters based on vessel speed, trim, draft, and environmental factors like tide and wind. This adaptive software ensures the most efficient rudder movements, providing superior course-keeping while reducing fuel consumption and mechanical wear on the steering gear.

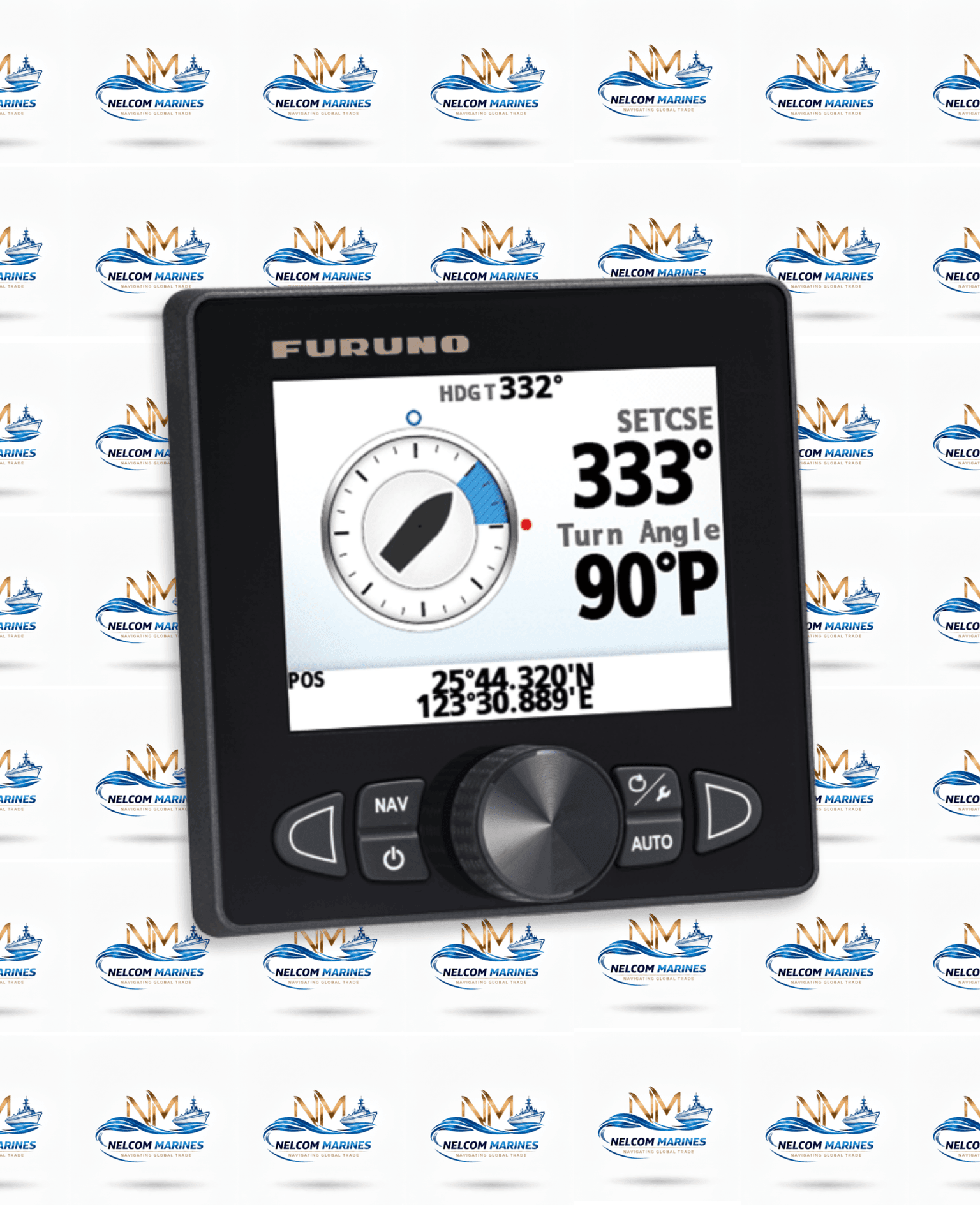

This model features a bright, sunlight-viewable 4.1-inch color LCD display that offers high-contrast day and night modes. One of its standout features is the Fantum Feedback™ technology, which allows for precise steering control on outboard vessels without the need for a physical rudder reference unit, greatly simplifying the installation process for smaller crafts and coastal vessels.

TECHNICAL SPECIFICATIONS

-- Model: NAVpilot-711C (Control Unit: FAP-7011C)

-- Processor Unit: FAP-7002

-- Display Type: 4.1-inch Color TFT LCD (320 x 240 pixels)

-- Supply Voltage: 12V to 24V DC

-- Power Consumption: 4.0 - 2.0 A (excluding pump drive)

-- Steering Modes: STBY, Auto, Dodge, Turn, Remote, Advanced Auto, Navigation, Wind, FishHunter™

-- Communication Ports: 1x CAN bus (NMEA 2000), 2x NMEA 0183

-- Operating Temperature: -15C to +55C

-- Waterproofing: IP56 (Control Unit) / IP20 (Processor Unit)

-- Drive Capacity: 25A continuous (50A peak for 5 seconds)

-- Weight: 0.33 kg (Control Unit)

KEY FEATURES & APPLICATIONS

-- Adaptive Self-Learning: Continuously optimizes steering response by learning the vessel's unique characteristics from the first dockside setup to every voyage thereafter.

-- SABIKI™ Mode: A specialized mode for fishing that allows the autopilot to maintain the vessel's heading while drifting astern, enabling the crew to focus on fishing rather than steering (available for outboard engines).

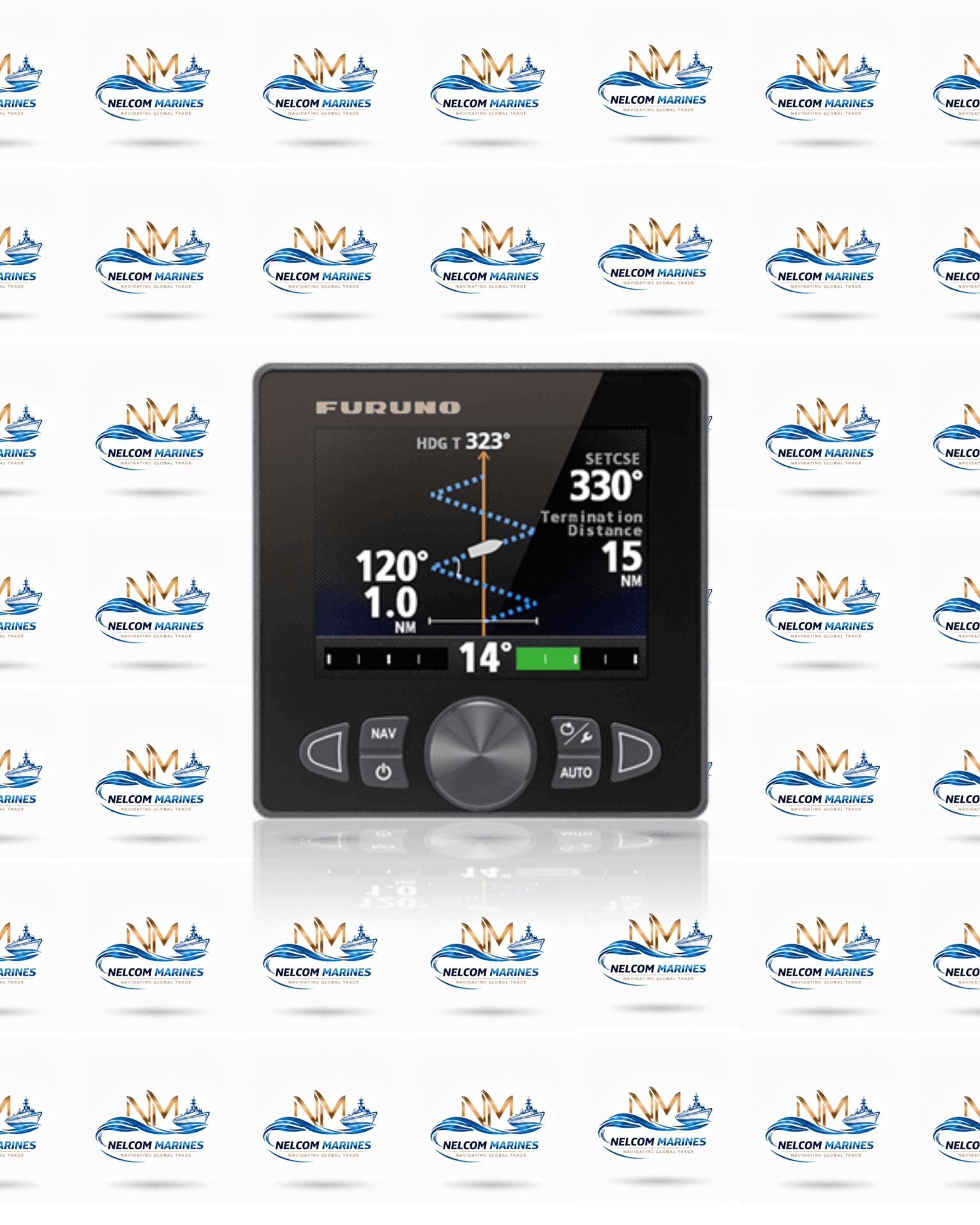

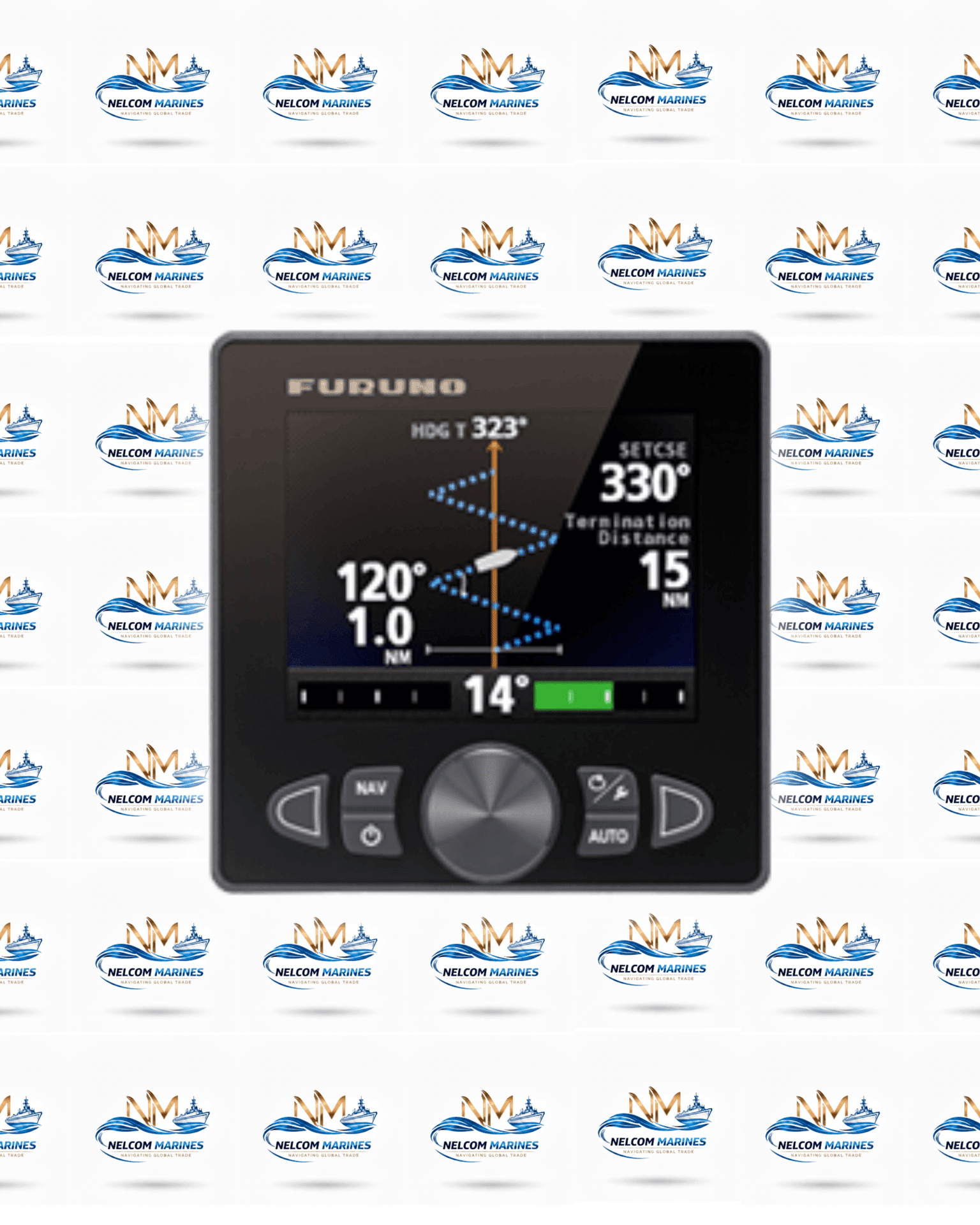

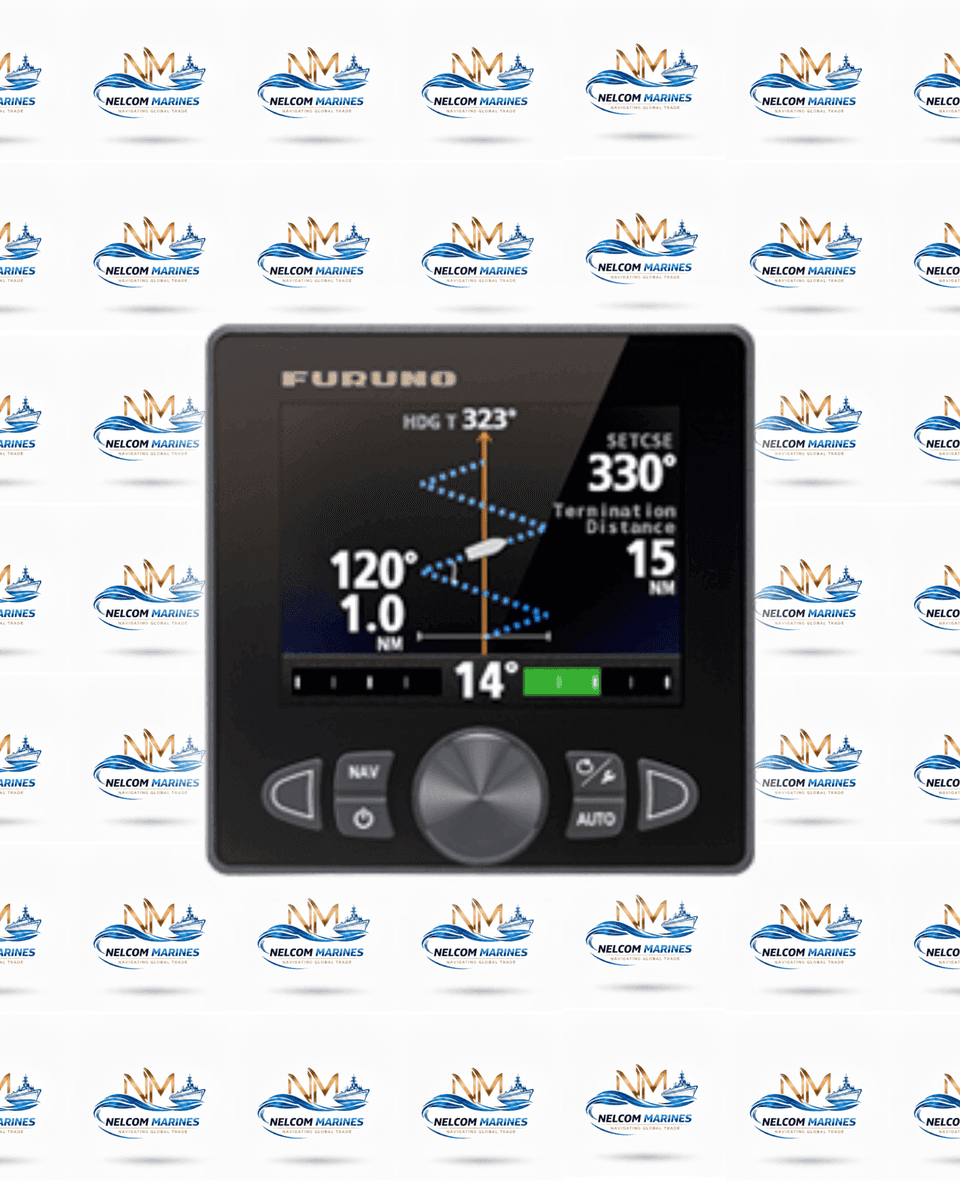

-- FishHunter™ Mode: Automatically executes specialized maneuvers like square, zigzag, circle, orbit, and figure-eight patterns around a selected sonar or radar target.

-- Safe Helm & Power Assist: Optional modes that allow for temporary manual steering without disengaging the pilot and provide speed-based power-assisted steering.

-- Dual Network Interface: Supports simultaneous connection to NMEA 2000 and NMEA 0183, allowing the pilot to bridge data between modern MFDs and older GPS or heading sensors.

-- Precision XTE: Capable of maintaining cross-track error within 0.003 nm (approx. 18 feet) when connected to a high-accuracy GPS source.

TYPICAL CONDITION (USED/REFURBISHED)

When we supply refurbished NAVpilot-711C systems from Alang/Bhavnagar, we focus on testing the FAP-7002 processor's drive circuitry. We verify the "FET" performance under load to ensure the motor outputs are stable. The FAP-7011C control unit is checked for LCD clarity and button responsiveness. We also ensure the CAN bus port is communicating correctly and that the internal memory successfully retains its "learned" calibration data after a power cycle.

COMPATIBLE BRAND MODELS:Furuno (NAVpilot-700, NAVpilot-300, FAP-7011, PG-700, SC-30, SC-70, SCX-20), Raytheon Anschütz (PilotStar D, NP-2015), Simrad (AP24, AP28, AP44, AC12, AC42), B&G (Triton2), Garmin (GHP 10, GHP 20, Reactor 40), Raymarine (Evolution EV-1, ACU-200).
