PRE OWNED JOTRON TR-8000 JOTRON TR-8000 MARINE AIS

PRODUCT DATA SHEET: JOTRON TR-8000 / TR-8000 MKII AIS (USED/REFURBISHED)

PRODUCT OVERVIEW

The Jotron TR-8000 is a MED-certified Class-A AIS system designed for all SOLAS-regulated vessels. It features a separate 7-inch high-resolution touchscreen display and a robust transponder unit connected via a simple Ethernet cable. The MkII version is further enhanced with full compliance for the latest Bridge Alert Management (BAM) standards and improved support for Inland Waterway regulations. It is a favorite for retrofits due to its integrated junction box and compact footprint.

+2

TECHNICAL SPECIFICATIONS

Model: Jotron TR-8000 / TR-8000 MkII

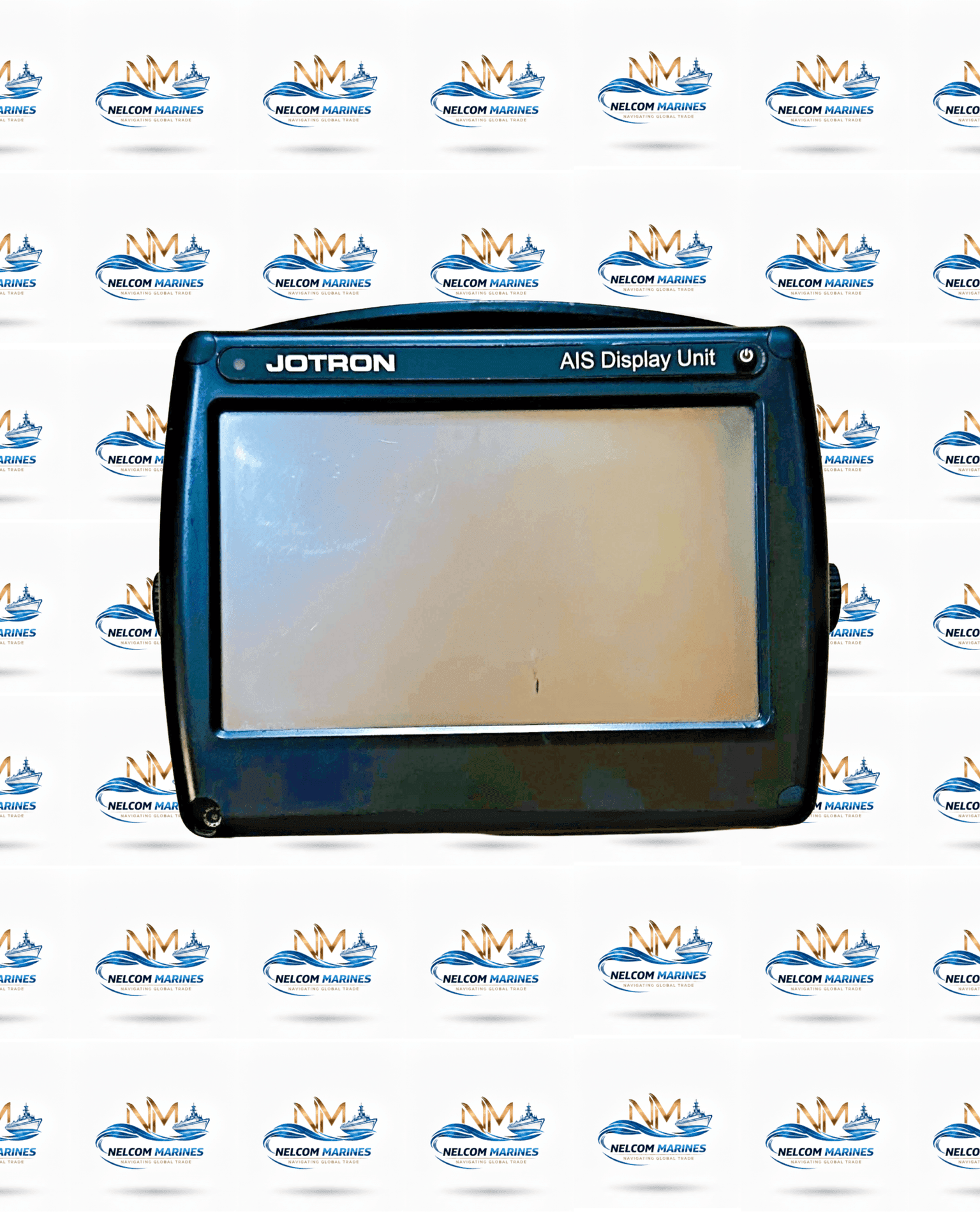

Display Unit: 7" Full-color Touchscreen LCD (IP54 rated)

Transponder Unit: Heavy-duty Alumina housing (IP56 rated)

Output Power: 12.5 W or 1 W (Automatic/Manual selection)

GNSS Receiver: Internal 72-channel receiver (GPS, GLONASS, Galileo)

Connectivity: * 5x IEC 61162-1 (RS422) inputs

2x IEC 61162-2 (High-speed RS422) I/O

1x LAN (Ethernet 10Base-T)

1x RS232 I/O

Power Supply: 10.8 VDC to 31.2 VDC (Dual power inputs for redundancy)

Weight: Display: 1.0 kg | Transponder: 3.7 kg

KEY FEATURES & APPLICATIONS

Intuitive Touch Interface: The 7-inch touchscreen makes entering voyage data (Draft, Destination, ETA) significantly faster than traditional keypad-based AIS units.

Dual Display Support: The transponder unit is capable of driving two separate display units simultaneously—ideal for vessels with dual bridge wings or multiple workstations.

Integrated Junction Box: External interface cables are connected directly inside the transponder unit, eliminating the need for a separate, bulky junction box and simplifying wiring.

Bridge Alert Management (BAM): (MkII only) Complies with the latest IEC 62923 standards for centralized bridge alarm handling.

Inland AIS Ready: Includes specialized software for European Inland Waterway "Blue Sign" requirements and cargo category management.

AIS-SART & AtoN Tracking: Provides dedicated symbols and prioritized alerts for Search and Rescue beacons and Aids to Navigation (AtoN).

Software Upgradable: Features an SD-card slot for easy firmware updates, ensuring the unit stays compliant with evolving maritime regulations.

TYPICAL CONDITION (USED/REFURBISHED)

Touchscreen Integrity: Used units are typically tested for "touch-point accuracy" and screen brightness.

Standard Kit: Usually includes the TR-8000 Display, TR-8000 Transponder, and GPS Antenna (SANAV SA-200).

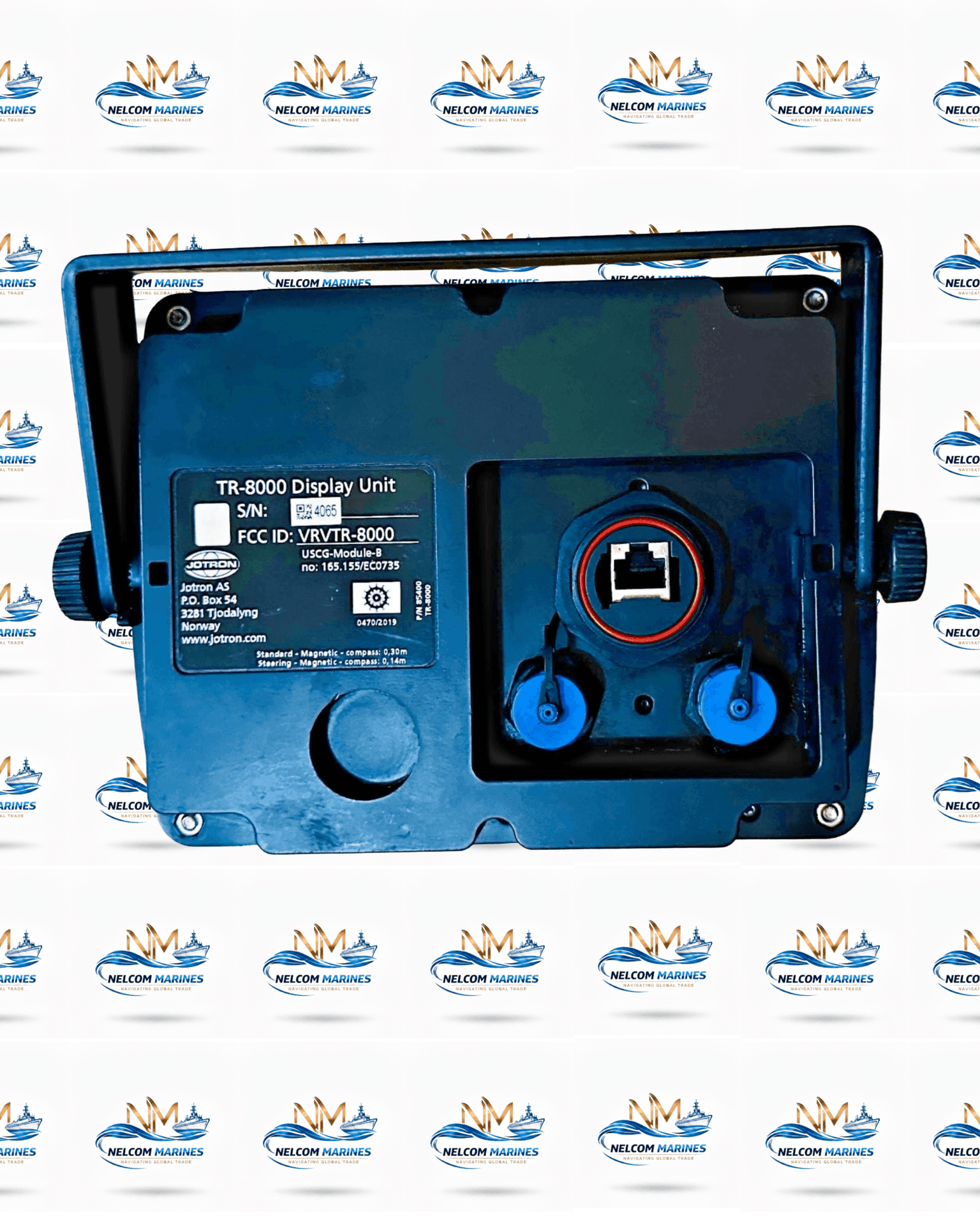

Refurbishment Note: Because the units are connected via Ethernet, used listings should be checked for the integrity of the waterproof RJ45 patch cable.
