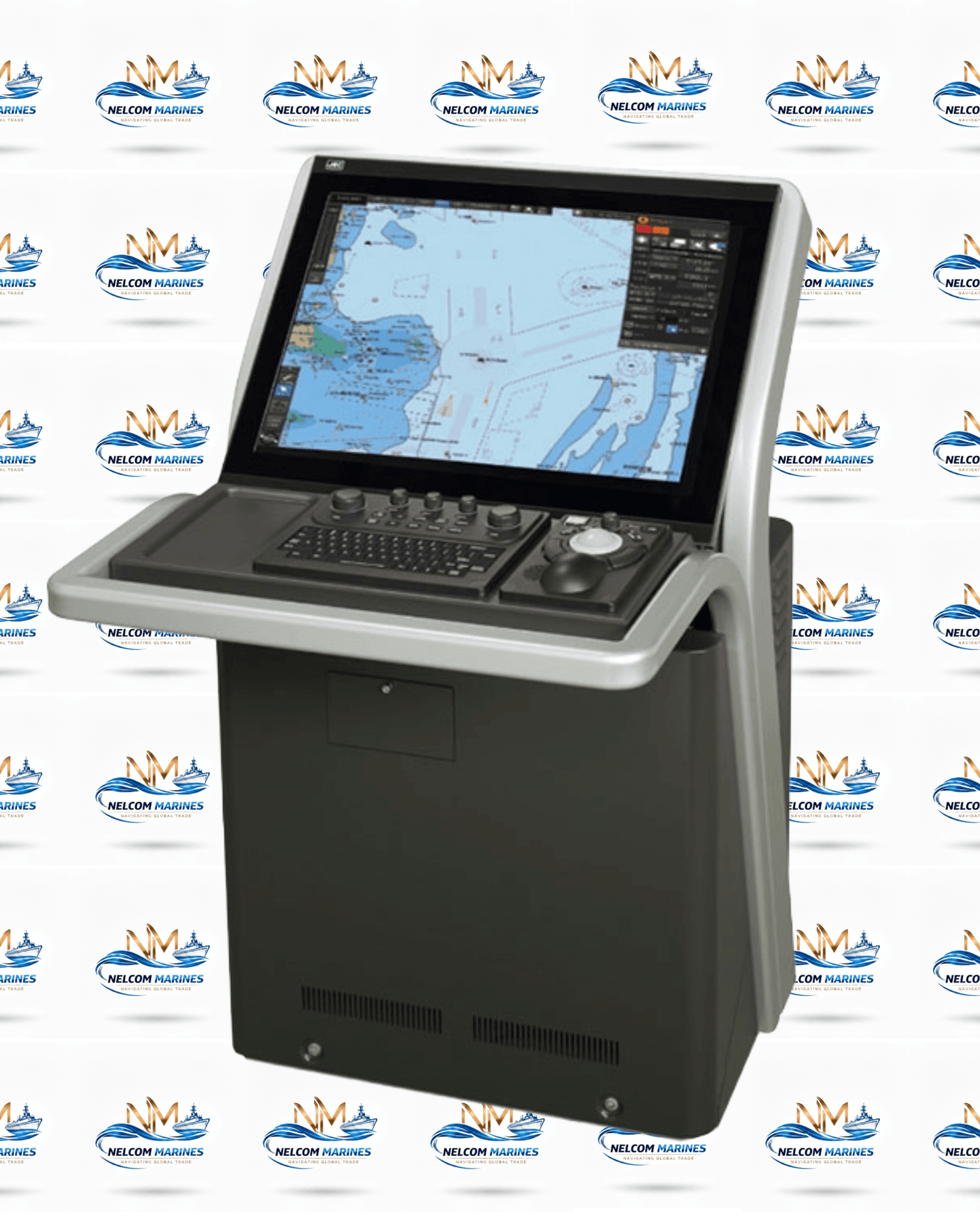

PRE OWNED JRC JAN-9201 JRC JAN-9201 MARINE ECDIS

The JRC JAN-9201 is an IMO-compliant Electronic Chart Display and Information System that features a 26-inch WUXGA color LCD. This model is part of JRC’s latest generation of ECDIS, designed with a focus on "simplified navigation." The jGUI interface ensures that critical data is always displayed in fixed positions, while the icon-based menu informs users of functions straightaway, reducing the learning curve for the crew.

One of the most significant improvements in the JAN-9201 is the integrated route editing, which combines graphic input and numeric table input into a single streamlined process. This allows waypoints to be added or modified on the chart and immediately reflected in the route table. Its high-performance Intel Core i5 processor ensures that even with heavy radar overlays and AIS target tracking, the system remains responsive and stable.

TECHNICAL SPECIFICATIONS

-- Model: JAN-9201 (26-inch model)

-- Manufacturer: JRC (Japan Radio Co., Ltd.)

-- Display: 26-inch WUXGA Color LCD (1920 x 1200 pixels)

-- Processor: Intel Core i5 2515E 2.5 GHz

-- Main Memory: 2 GB

-- Storage: Dual SSD for high-speed data access and redundancy

-- Chart Formats: S-57 Ed 3.0/3.1, S-63 (AVCS/AIO), Jeppesen, ARCS

-- Interfaces: 8x NMEA 0183 (IEC 61162-1), 2x IEC 61162-2, 4x Contact Input, 8x Contact Output

-- Power Supply: 110-230V AC or 24V DC

-- Power Consumption: 240 VA (Maximum)

-- Radar Overlay: Optional (requires software license and RIF interface)

-- Compliance: IMO MSC.232(82), IEC 61174 Ed. 4, IEC 62288, MED Certified

KEY FEATURES & APPLICATIONS

-- 26-inch High-Resolution Monitor: The extra-wide screen provides superior visibility and a wider chart view, allowing for split-screen monitoring without losing detail.

-- jGUI (Integrated User Interface): An icon-driven menu system that keeps the screen clean while providing instant access to sophisticated tools like "Pick Report" and "Safety Check."

-- Integrated Route Editing: Allows for simultaneous editing of up to four routes, with a one-click safety check that highlights hazards on both the chart and the numeric table.

-- Target Tracking (TT) & AIS: Supports up to 200 ARPA targets and up to 1000 AIS targets (with optional expansion), featuring mouse-over pop-ups for quick data reference.

-- J-Marine Cloud Support: Facilitates the easy updating of charts and software through JRC's cloud-based total solution service.

-- Durable Hardware Design: Features an LED-backlit monitor and solid-state storage, making it highly resistant to the vibrations and temperature fluctuations common on commercial ships.

TYPICAL CONDITION (USED/REFURBISHED)

Our refurbished JAN-9201 units from the Alang recycling yards undergo a detailed technical overhaul. We focus on the NDC-1590 Central Control Unit, verifying the health of the dual SSDs and ensuring the DVD drive is functional for chart loading. The NWZ-208 display is tested for color accuracy and backlight stability. We also ensure that the NCE-5605 Trackball is responsive and that all serial interface circuits (SLC) are communicating correctly with bridge sensors. Each unit is delivered with a factory-reset database and the latest stable firmware.

COMPATIBLE BRAND MODELS:JRC JAN-9201, JRC JAN-7201, JRC JAN-901B, JRC JMA-9100 Radar, JRC JHS-800S VHF, Furuno FMD-3200, Furuno FMD-3300, Sperry Marine VisionMaster FT, Tokyo Keiki EC-8100, Danelec DM-800.
