PRE OWNED JRC JHS-182 JRC JHS-182 MARINE AIS

PRODUCT DATA SHEET: JRC JHS-182 CLASS-A AIS (USED/REFURBISHED)

PRODUCT OVERVIEW

The JRC JHS-182 is an IMO-compliant Class-A Universal AIS designed for a wide range of commercial vessels. It is celebrated for its compact "All-in-One" antenna-transponder unit (NTE-182), which houses the VHF antenna, GPS antenna, and the AIS processor in a single mast-mounted housing. This unique design minimizes signal loss over long cable runs and simplifies the installation process. Paired with the user-friendly NCM-779 controller, the JHS-182 provides reliable, real-time vessel tracking and collision avoidance data.

TECHNICAL SPECIFICATIONS

Model: JRC JHS-182

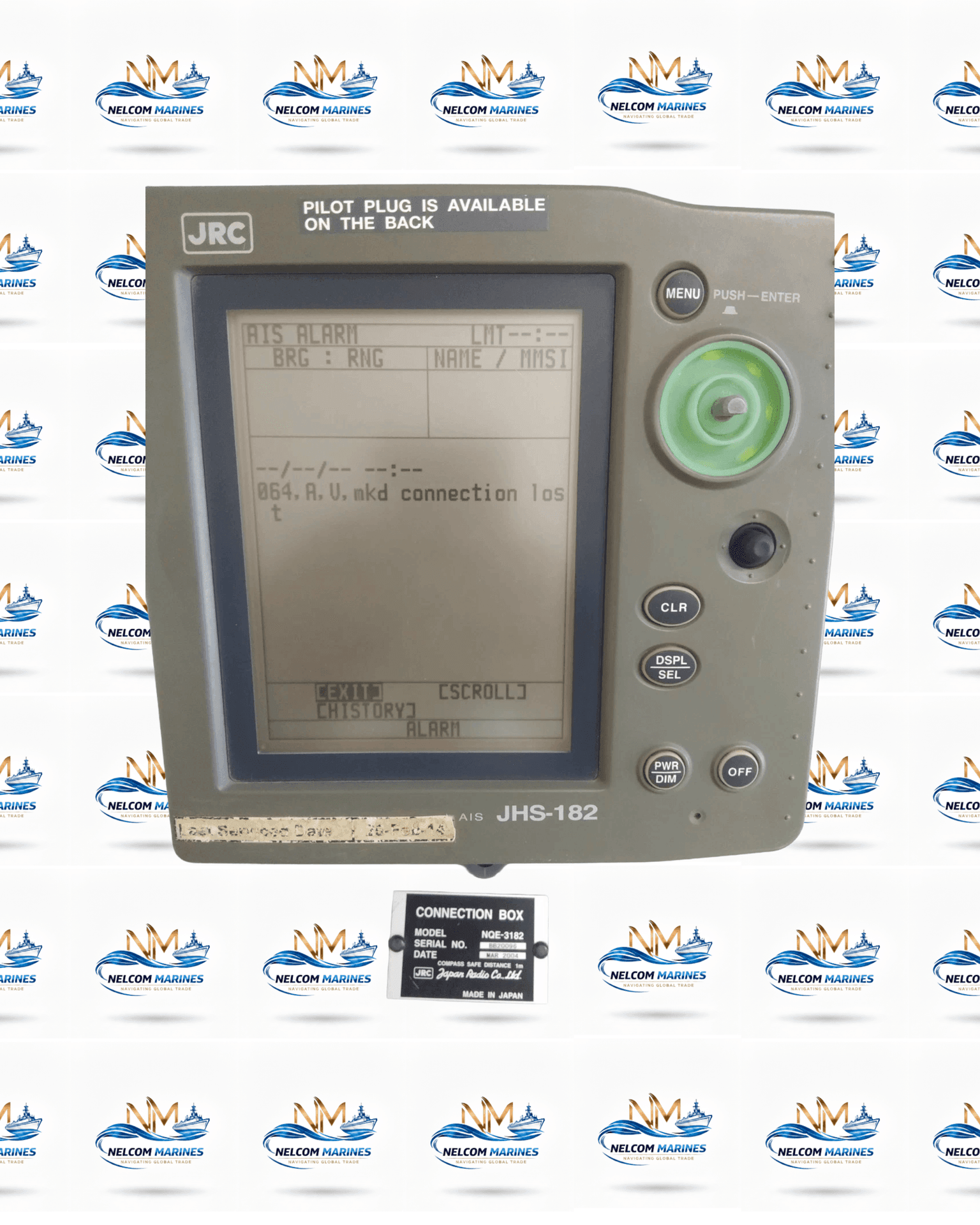

AIS Controller: NCM-779 (5.7-inch FSTN LCD, 320x240 pixels)

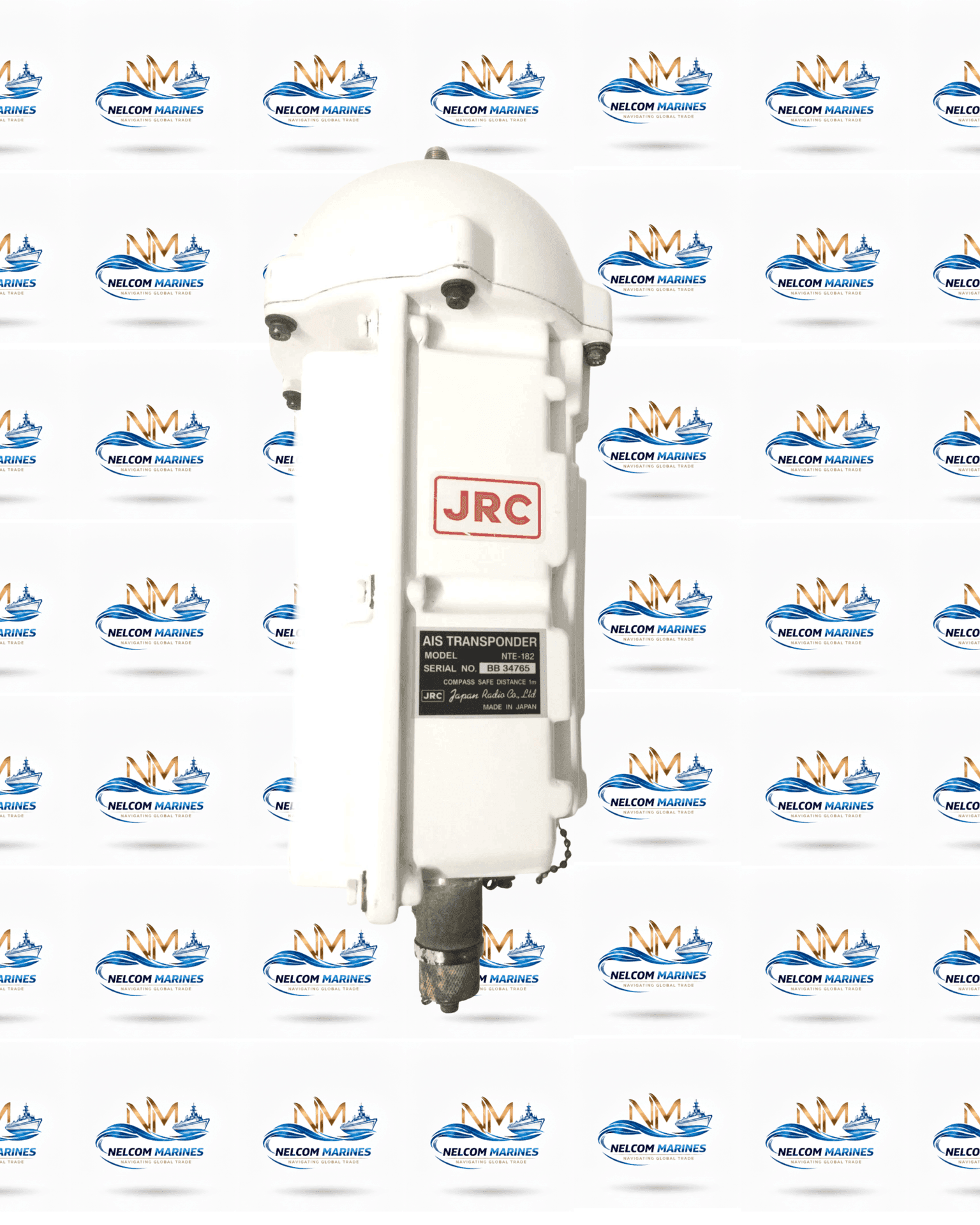

AIS Transponder: NTE-182 (Integrated Antenna/Transponder Unit)

Connection Box: NQE-3182

Frequency Range: 156.025 MHz to 162.025 MHz

Output Power: 12.5 W / 2 W (Automatic or Manual)

Interface: * Sensor Input: 4x IEC 61162-1

Radar/ECDIS: 3x IEC 61162-2

Pilot Plug: 1x IEC 61162-2

Power Supply: 24 VDC (Operating range: 19-35 VDC)

Weight: Controller: 1.0 kg | Transponder: 2.6 kg | Connection Box: 2.6 kg

KEY FEATURES & APPLICATIONS

Integrated Antenna-Transponder (NTE-182): By combining the VHF/GPS antennas with the transponder, JRC eliminated the need for multiple heavy coaxial cables running down the mast, requiring only one primary cable to the bridge.

5.7-inch Large Display: The NCM-779 controller offers a larger viewing area than many competitors, allowing for comfortable visibility of the "Target Ship List" and "Graphic Display" (radar-style plotter).

Guard Zone Alert: A built-in safety function that provides visual and audible alarms if a vessel enters a user-defined perimeter, significantly enhancing collision avoidance.

Own-Group Recognition: Allows users to preset specific MMSI numbers for their own fleet, marking them with a unique symbol for easy identification on the plotter screen.

Stress-Free Operation: Features a simple joystick and jog-dial interface, allowing navigators to scroll through target lists and view ship details (Name, Position, SOG, COG, ETA) rapidly.

Self-Diagnosis Function: Includes a comprehensive internal test suite that monitors the TRX (Transceiver) condition and antenna health, displaying any errors on the main screen for quick troubleshooting.

Legacy Integration: Highly compatible with JRC’s JMA-7000 and JMA-9000 series radars, allowing AIS targets to be overlaid directly onto the radar PPI.

TYPICAL CONDITION (USED/REFURBISHED)

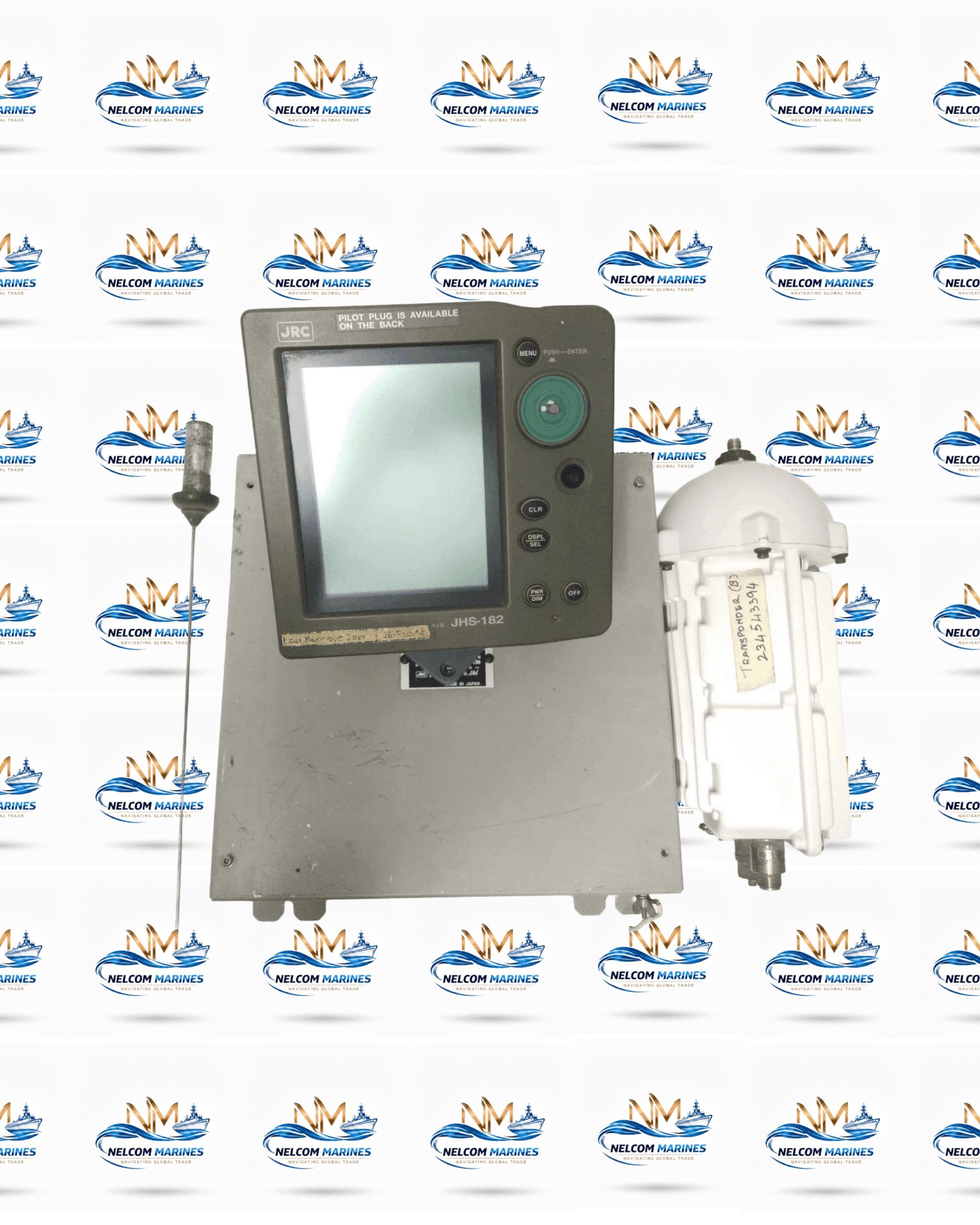

System Components: A full used set typically consists of the NCM-779 Controller, NTE-182 Transponder Unit, and the NQE-3182 Connection Box.

Technical Check: Refurbished units are often tested for LCD contrast stability and VHF transmit power. Because the transponder is mast-mounted, the exterior casing is checked for UV degradation and seal integrity.

Bhavnagar/Alang Source: These units are frequently sourced from decommissioned vessels; ensure the internal backup battery is checked to maintain voyage data settings.
