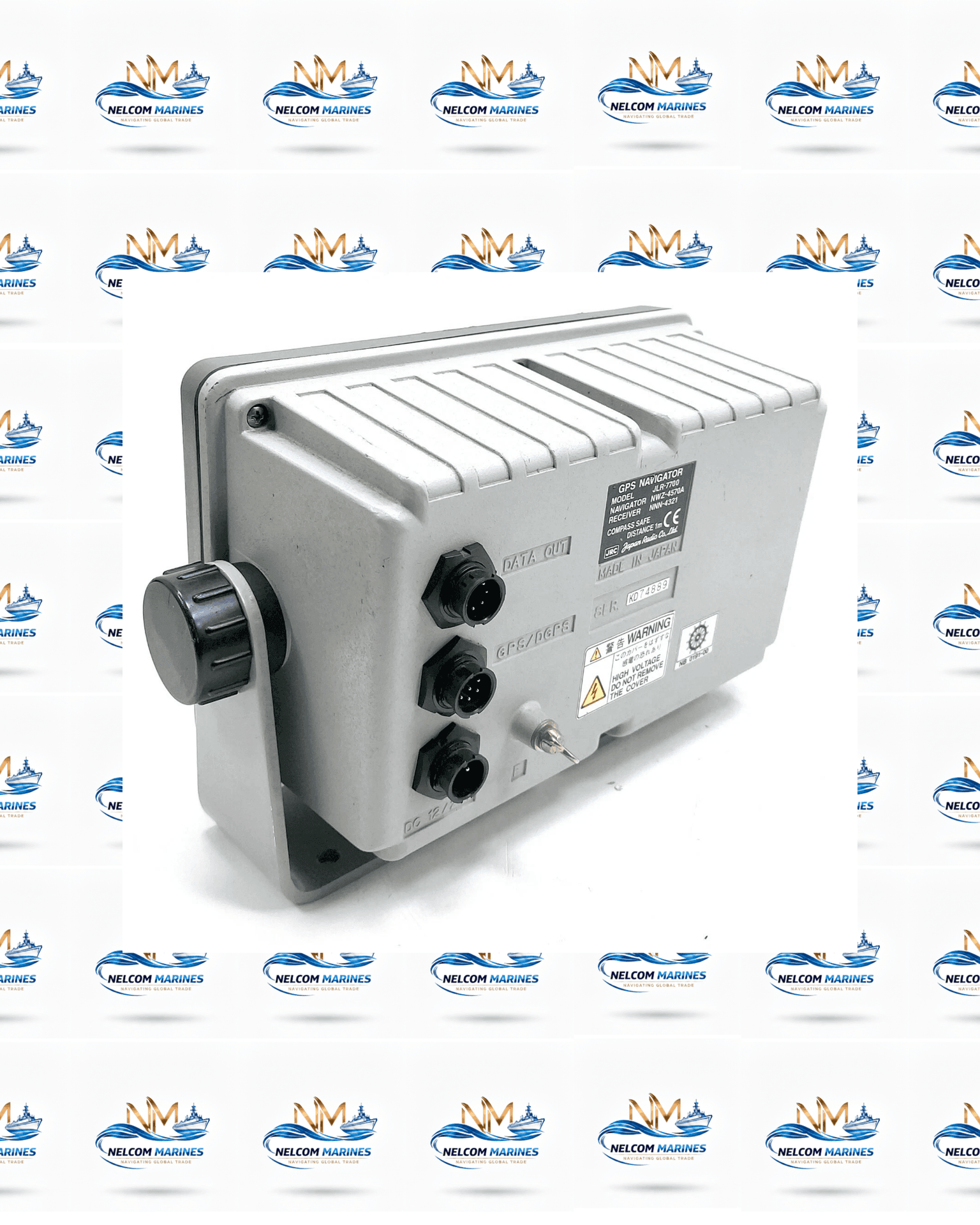

PRE OWNED JRC JLR-7700 JRC JLR-7700 MARINE GPS

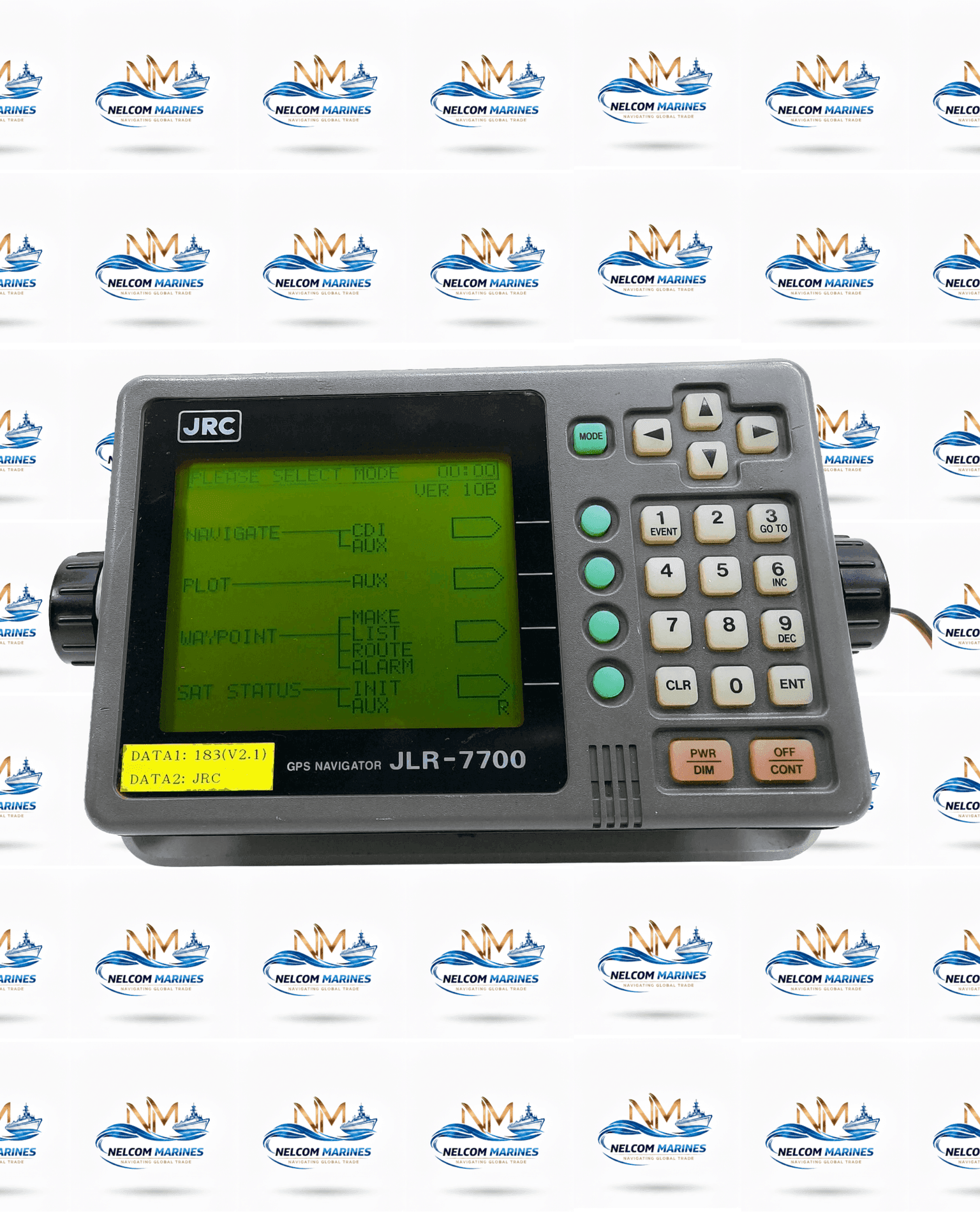

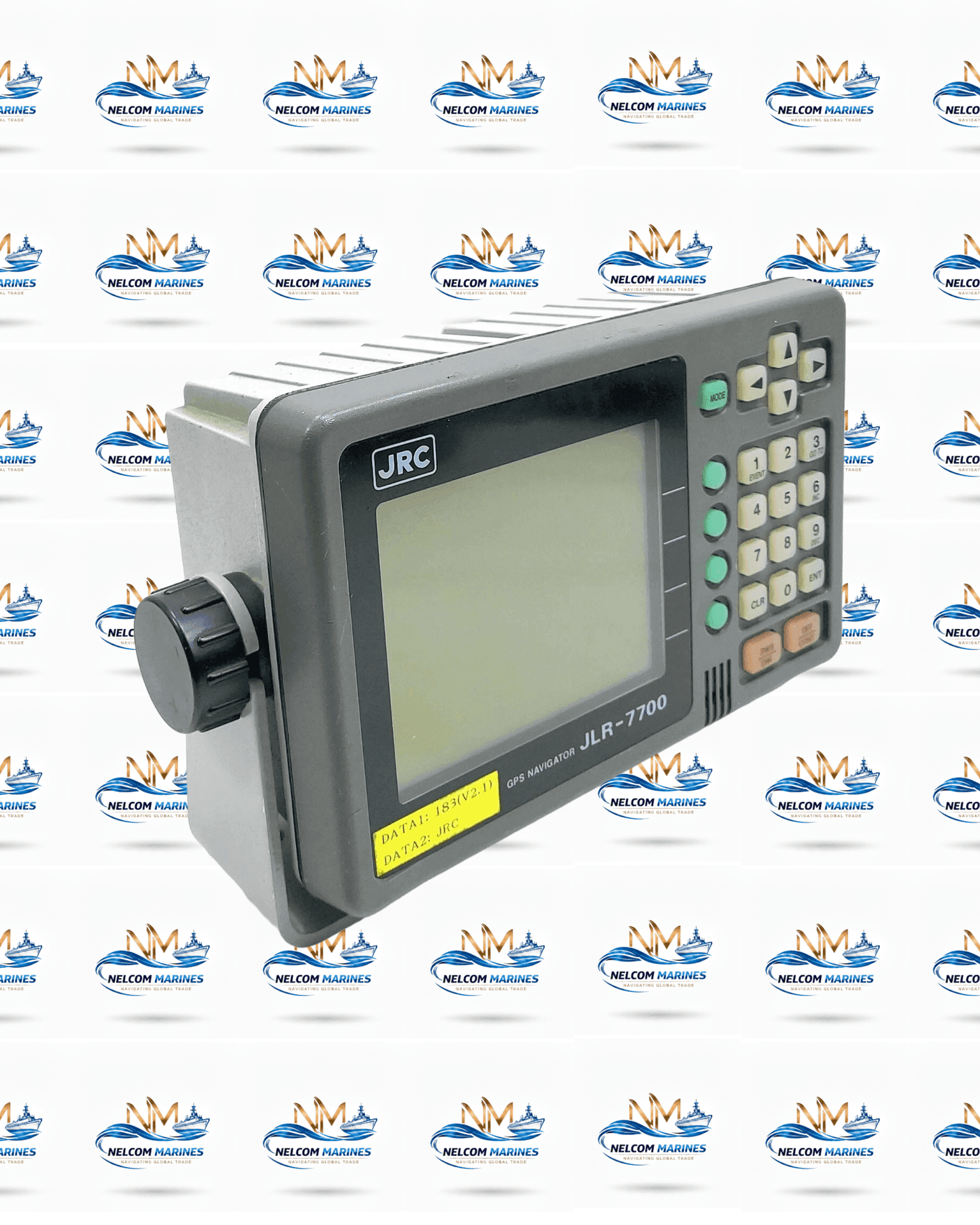

The JRC JLR-7700 (Display unit NWZ-4570) features a high-contrast 5.7-inch monochrome LCD that provides essential navigational data with professional-grade accuracy. It is specifically engineered to meet the stringent performance standards set by the IMO for GPS equipment. The system is prized for its ability to maintain a consistent position fix even in areas with poor satellite geometry or environmental interference.

The unit is designed for 24/7 bridge operation, serving as a primary data source for the ship's AIS, Radar, and ECDIS. Its interface is straightforward and tactical, allowing officers to quickly save waypoints, plan routes, or access the dedicated Man Overboard (MOB) function. The JLR-7700 is a cornerstone for vessels that prioritize long-term equipment lifespan and ease of integration within a JRC-equipped bridge.

TECHNICAL SPECIFICATIONS

-- Model: JLR-7700 (NWZ-4570)

-- Manufacturer: JRC (Japan Radio Co., Ltd.)

-- Display: 5.7-inch Monochrome STN LCD

-- Resolution: 320 x 240 Pixels

-- Receiver Type: 12-channel parallel

-- Position Accuracy: GPS: 13m (95%), DGPS: 5m (with optional correction)

-- Storage: 2,000 Waypoints, 2,000 Track Points, 100 Routes

-- Interfaces: 3x NMEA 0183 Outputs, 1x NMEA Input, RS-232C

-- Supply Voltage: 12V to 24V DC

-- Power Consumption: Less than 10 W

-- Waterproofing: IPX5 (Display Unit)

-- Compliance: IMO MSC.112(73), IEC 61108-1

KEY FEATURES & APPLICATIONS

-- SOLAS & IMO Compliant: Meets all international requirements for primary GPS navigation on large merchant ships, ensuring trouble-free port state inspections.

-- Multiple Display Formats: Offers a choice of Plotter, Steering, Highway, and customizable Nav-Data screens to suit the specific needs of the voyage.

-- Stable Data Output: Features three dedicated NMEA output ports to ensure that position, speed, and time data are distributed to all bridge electronics without signal loss.

-- Dedicated MOB Function: A prominent physical button allows for the immediate recording of a Man Overboard position, with an automatic navigation bridge to guide the ship back.

-- SBAS Ready: Capable of utilizing WAAS, EGNOS, or MSAS correction signals to provide more precise positioning for coastal and harbor navigation.

-- Rugged Industrial Build: The display and processor units are housed in a heavy-duty casing designed to withstand the high temperatures and vibrations of commercial shipping.

TYPICAL CONDITION (USED/REFURBISHED)

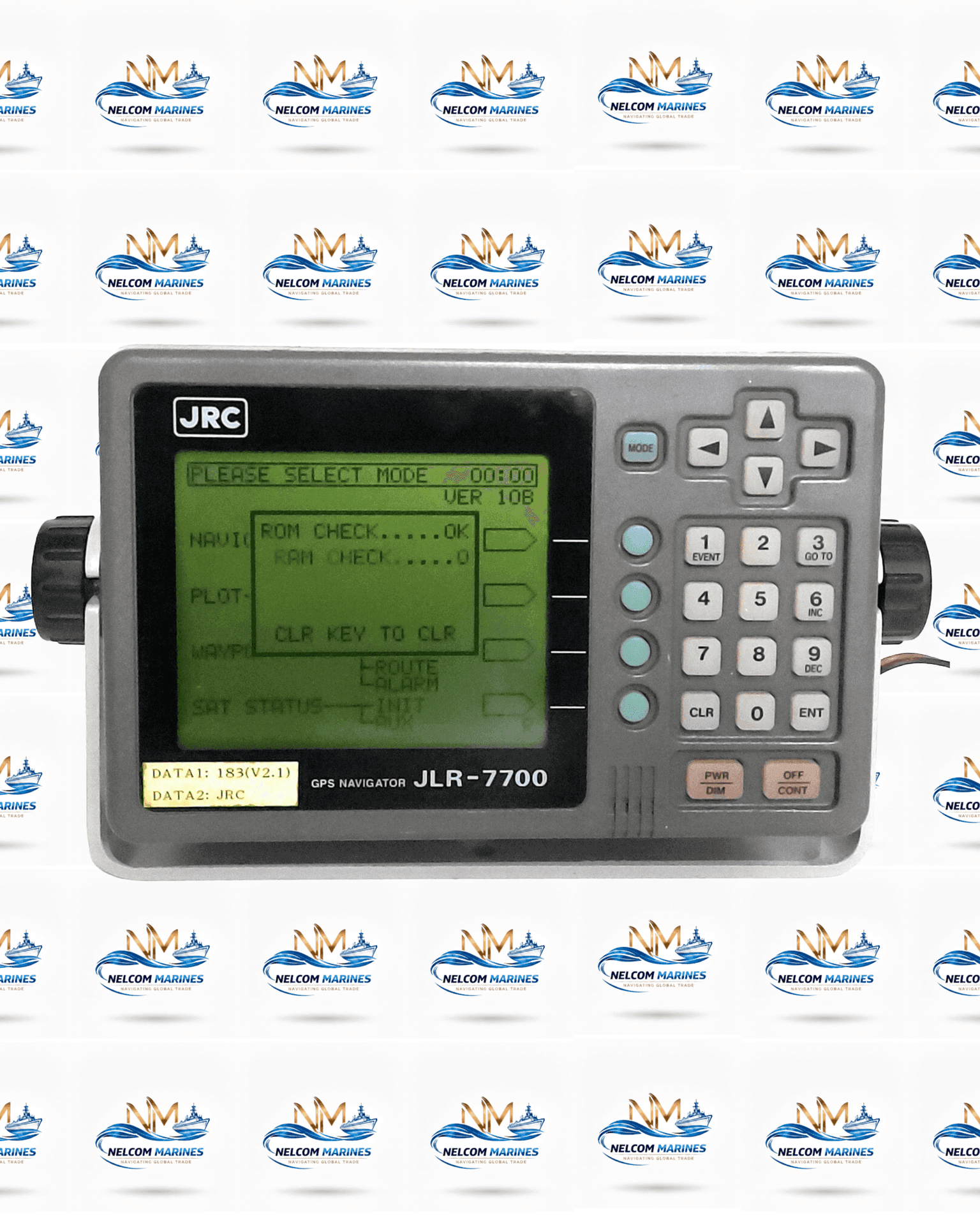

Our refurbished JLR-7700 units from the Alang yards are subject to a meticulous technical audit. We focus on the LCD contrast and clarity, ensuring the monochrome display remains sharp across all brightness levels. The internal CMOS battery is replaced to protect stored navigational data and user settings. We also verify the NMEA data buffers for stable output to external Radars and AIS systems. Every unit is factory-reset and provided with a detailed test report from our Bhavnagar facility.

COMPATIBLE BRAND MODELS:

JRC JLR-7700, JRC JNAV-500, JRC NWZ-4570, Furuno GP-150, Furuno GP-90, Furuno GP-170, Koden KGP-920, Tokyo Keiki G-1, Samyung GP-290.
