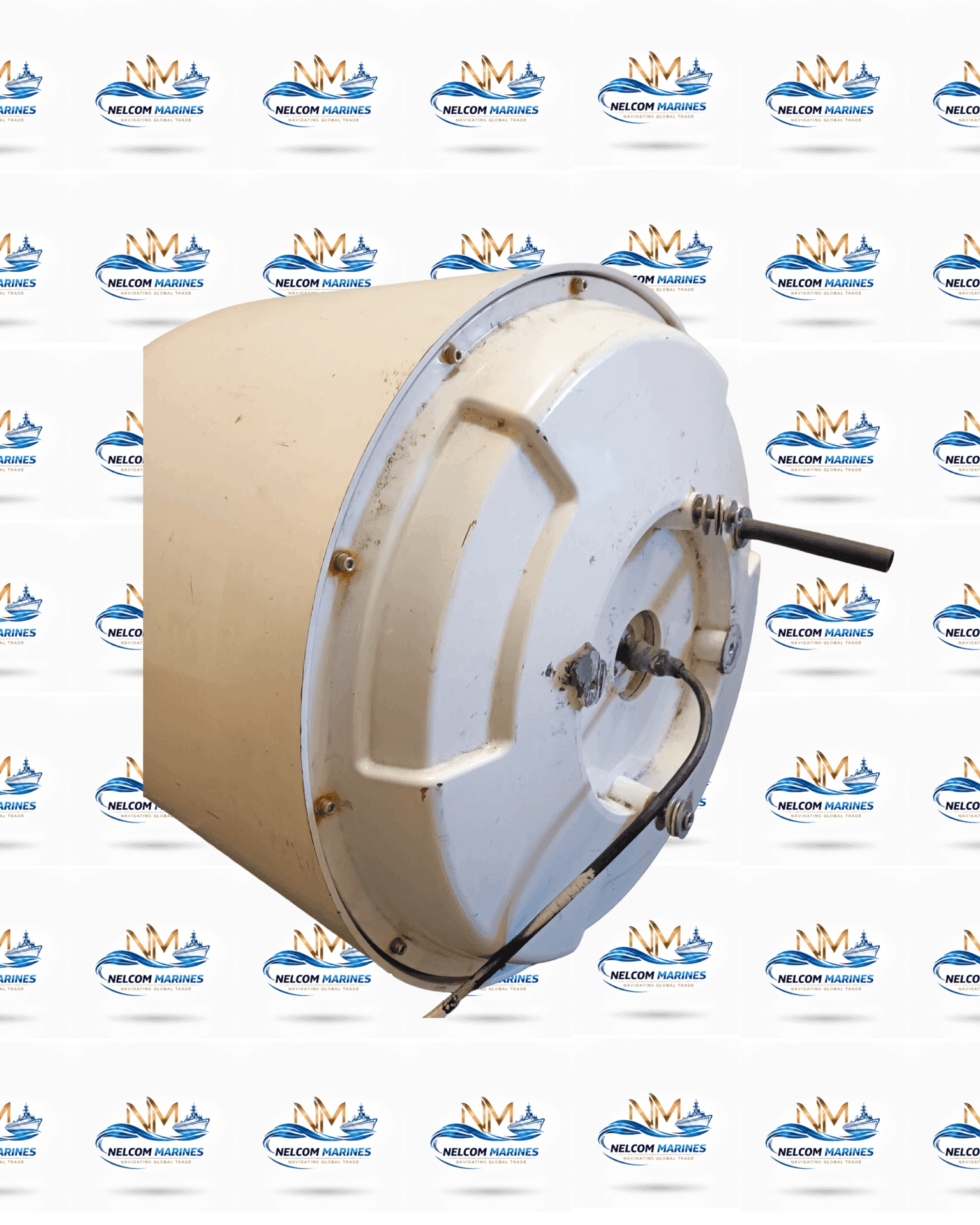

PRE OWNED SAILOR FBB-500 DOM TT-3052C SAILOR FBB-500 DOM TT-3052C MARINE ANTENA

PRODUCT OVERVIEW

The Sailor TT-3052C is the refined, "Version C" Above Deck Unit (ADU) for the world-renowned Sailor 500 FleetBroadband system. It is a fully stabilized 3-axis antenna equipped with advanced rate sensors, allowing it to maintain a rock-solid satellite lock even during the most violent ship motions in heavy storms.

Designed to operate on the Inmarsat I-4 satellite network, the TT-3052C delivers the highest data speeds available in the FleetBroadband family (up to 432 kbps). It is the standard for commercial shipping, allowing the crew to handle large file transfers, VPN connections, and high-quality voice calls all at once. The "C" version represents the most modern hardware iteration, offering improved tracking efficiency and easier serviceability compared to the older A and B versions.

TECHNICAL SPECIFICATIONS

-- Model: Sailor TT-3052C (Part of Sailor 500 FBB System)

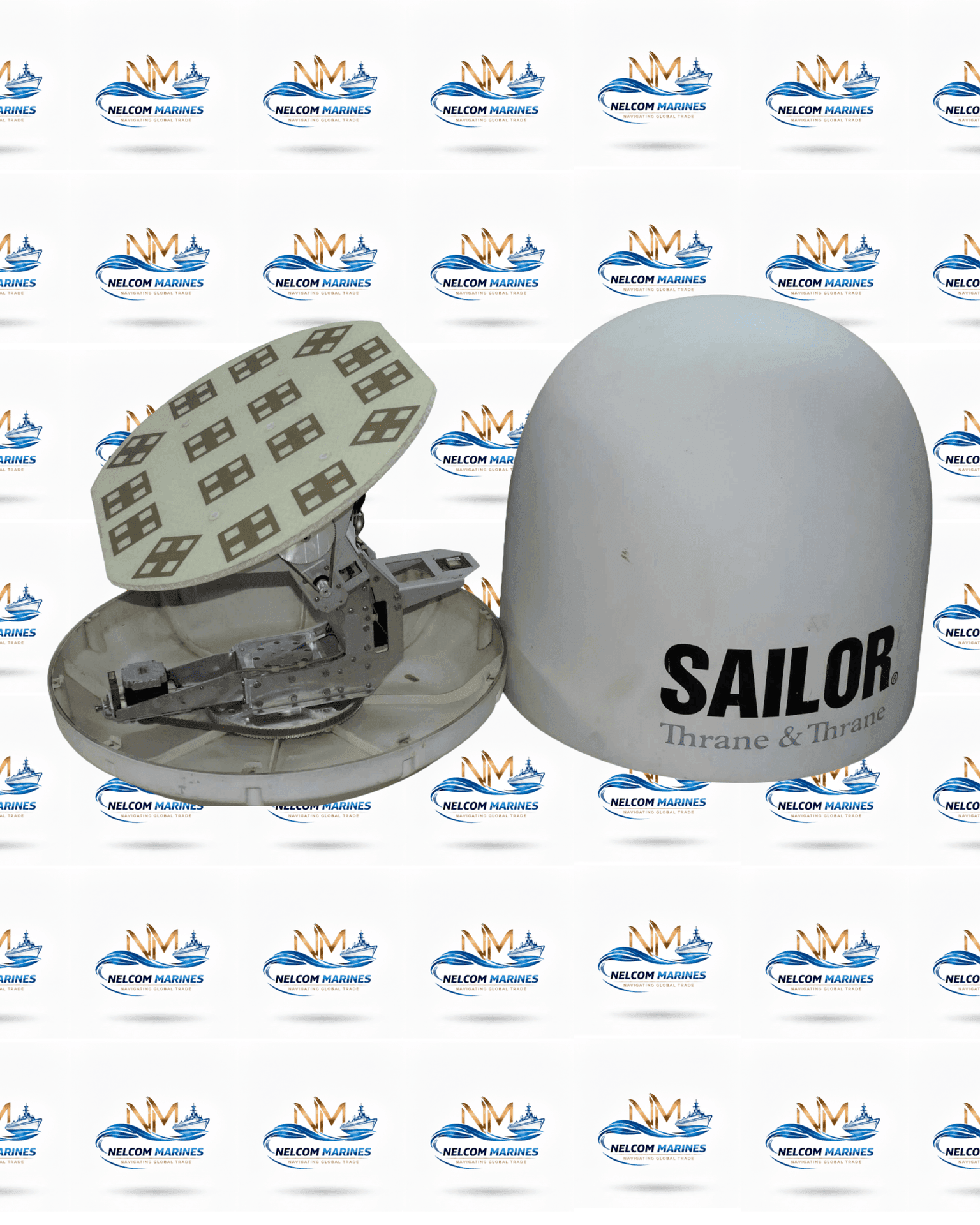

-- Antenna Type: 3-axis stabilized tracking antenna

-- Standard IP Data: Up to 432 kbps (Receive/Transmit)

-- Streaming IP: 32, 64, 128, 256 kbps (Guaranteed bandwidth)

-- Frequency Range (RX): 1525.0 MHz to 1559.0 MHz

-- Frequency Range (TX): 1626.5 MHz to 1660.5 MHz

-- Voice Services: 4 kbps AMBE+2 / 3.1 kHz Audio (Fax/Analog)

-- ADU Connector: 50 Ohm N-Type (Female)

-- Operating Temperature: -25C to +55C

-- Antenna Dimensions: 630 mm (Height) x 605 mm (Diameter)

-- Antenna Weight: 16 kg (Approx.)

-- Power Supply: 10.5 to 32 VDC (Supplied via BDU)

KEY FEATURES & APPLICATIONS

-- High-Speed Connectivity: Provides near-shore internet speeds in the middle of the ocean, supporting email, web browsing, and complex vessel management software.

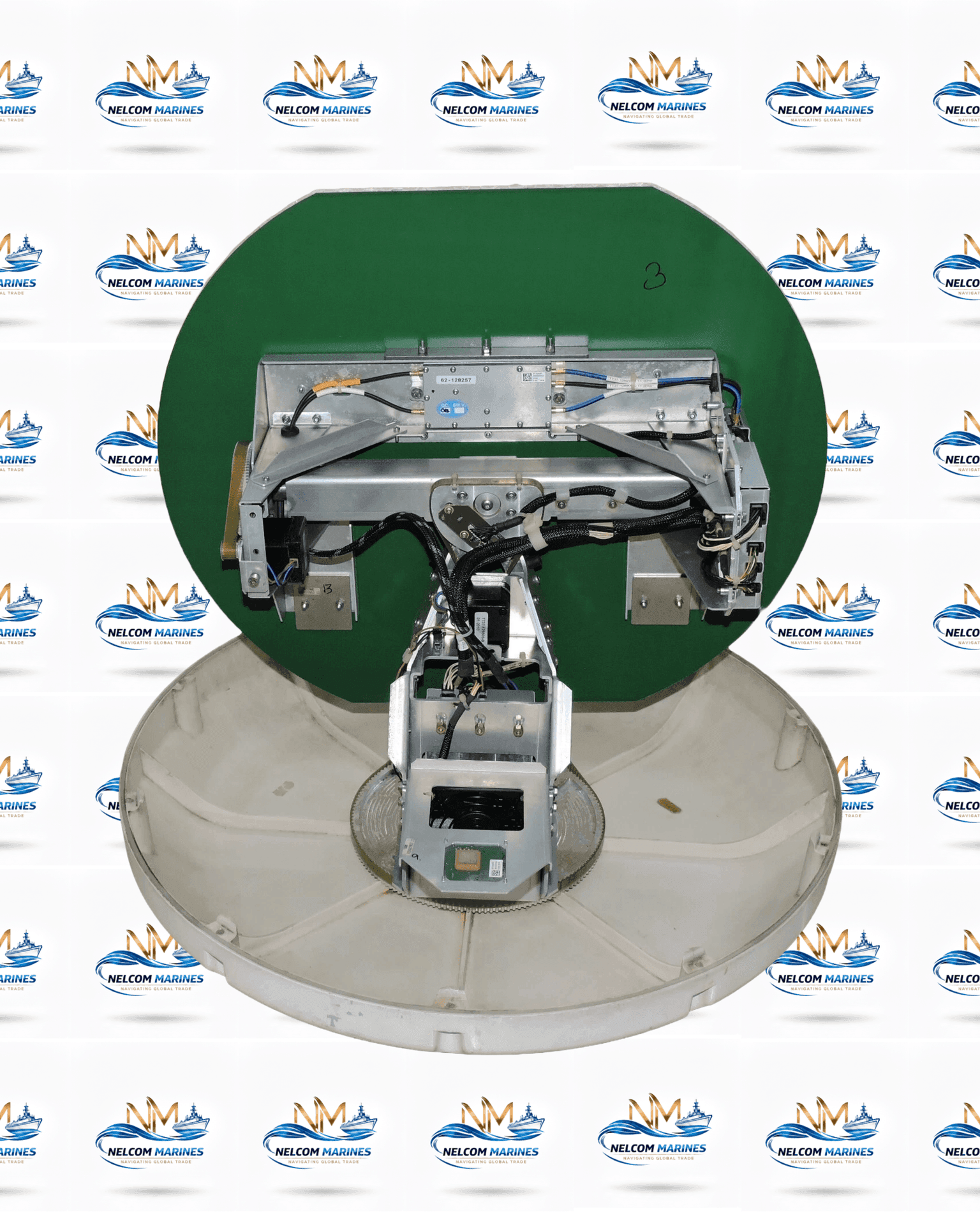

-- Unrivaled Tracking Stability: The 3-axis motor system with rate sensors ensures the antenna remains pointed at the satellite regardless of heavy rolling, pitching, or yawing.

-- Simultaneous Communication: Supports high-speed data while running multiple voice lines, eliminating the need for separate satellite phone systems.

-- Advanced Remote Support: Features a built-in web interface (via the BDU) that allows for remote diagnostics and performance monitoring by shore-based technicians.

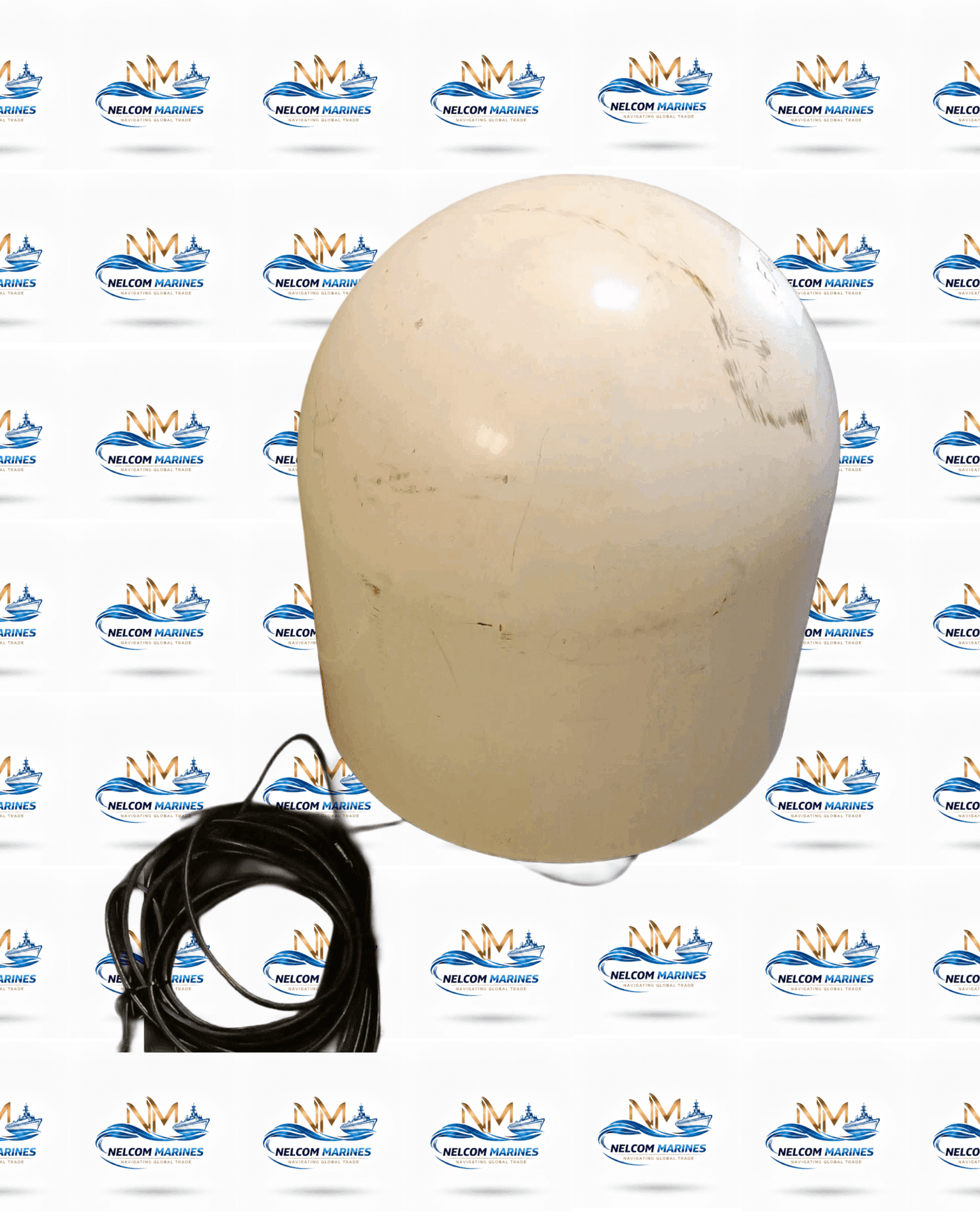

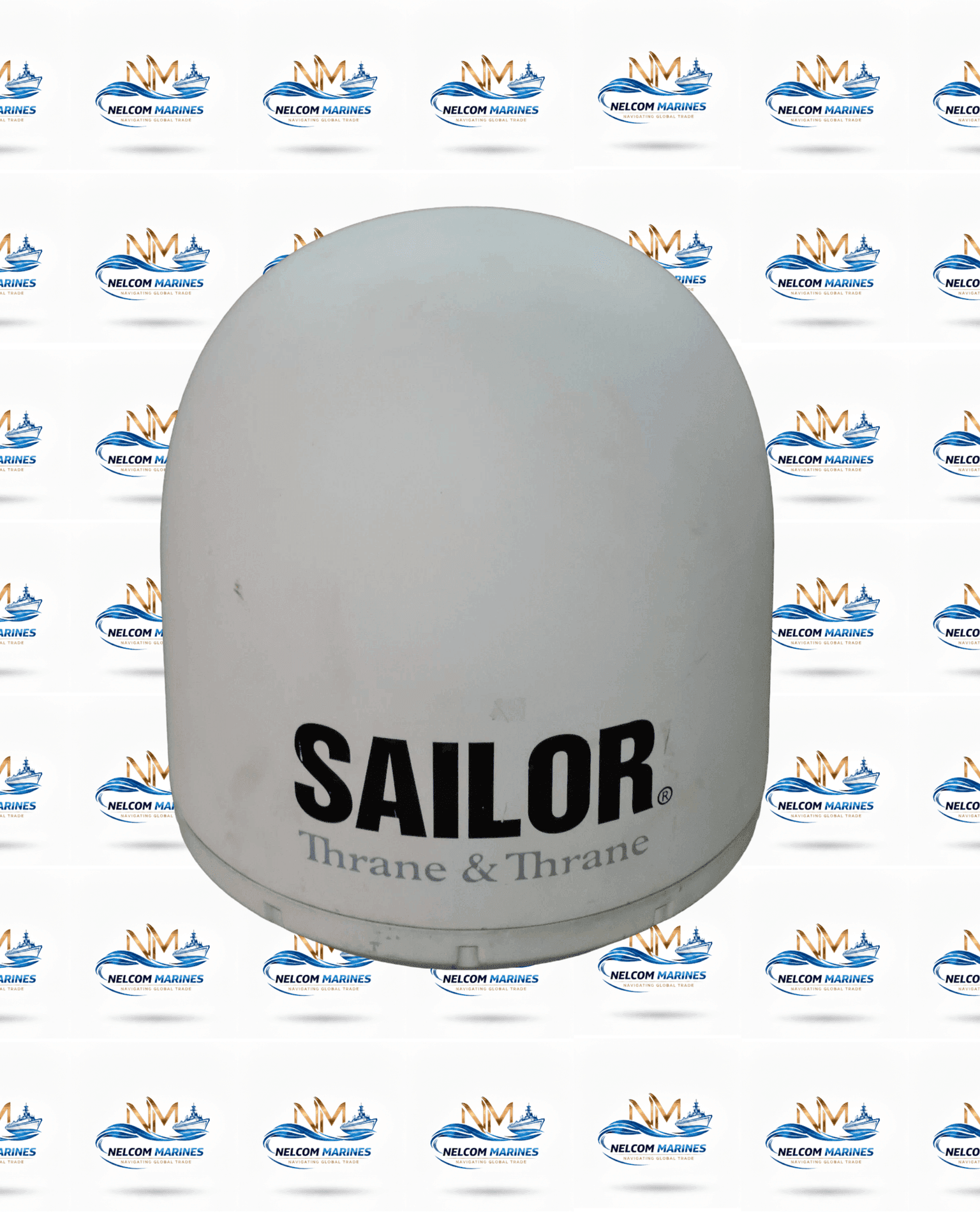

-- Rugged Radome Design: Built with a high-impact, UV-stabilized dome that protects the tracking electronics from salt-water ingress and extreme temperature fluctuations.

-- Dual Antenna Support: Can be integrated into a "Dual Antenna" configuration (using two TT-3052C units) to eliminate blocking zones caused by the ship’s mast or funnel.

TYPICAL CONDITION (USED/REFURBISHED)

Sourcing a TT-3052C from the ship-breaking yards in Alang/Bhavnagar is a great cost-saving move. Refurbished units are put through a "full-circle" motor test to ensure the azimuth and elevation belts are in perfect condition. We verify the "Lock-on" time and check the LNA (Low Noise Amplifier) gain levels. The radome is polished and inspected for any micro-cracks that could lead to moisture issues at sea.

COMPATIBLE BRAND MODELS:Sailor / Thrane & Thrane (FBB-500, TT-3052A, TT-3052B, TT-3740A, TT-3740B, TT-3740C, Sailor 250, Sailor 150), Furuno (FELCOM 500, FELCOM 250), JRC (JUE-500, JUE-501, JUE-250, JUE-251), Cobham (Sailor 6110, 6120), Intellian (FB500, FB250), KVH (TracPhone V7, V11), Samyung (SBB-500, SBB-250).
