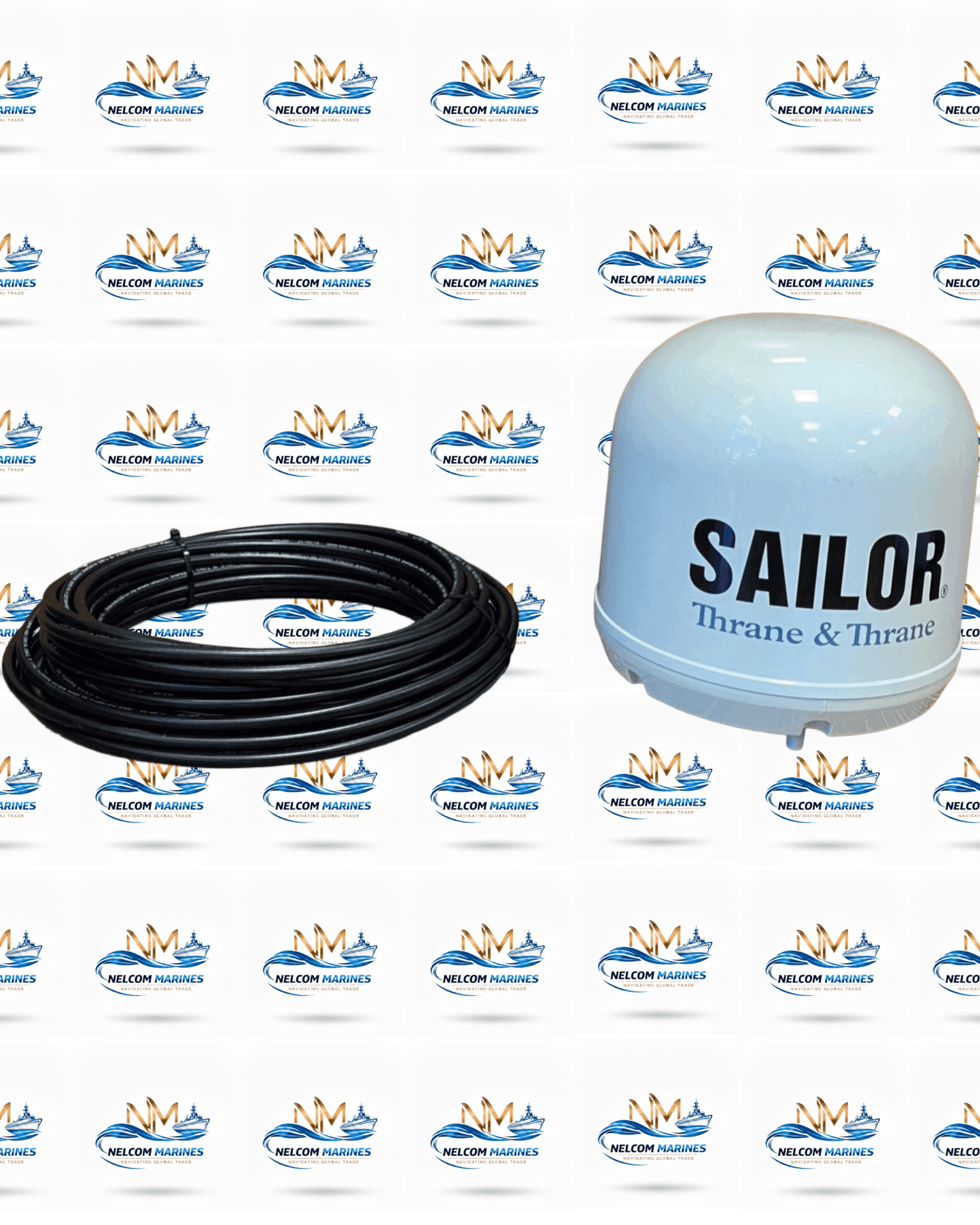

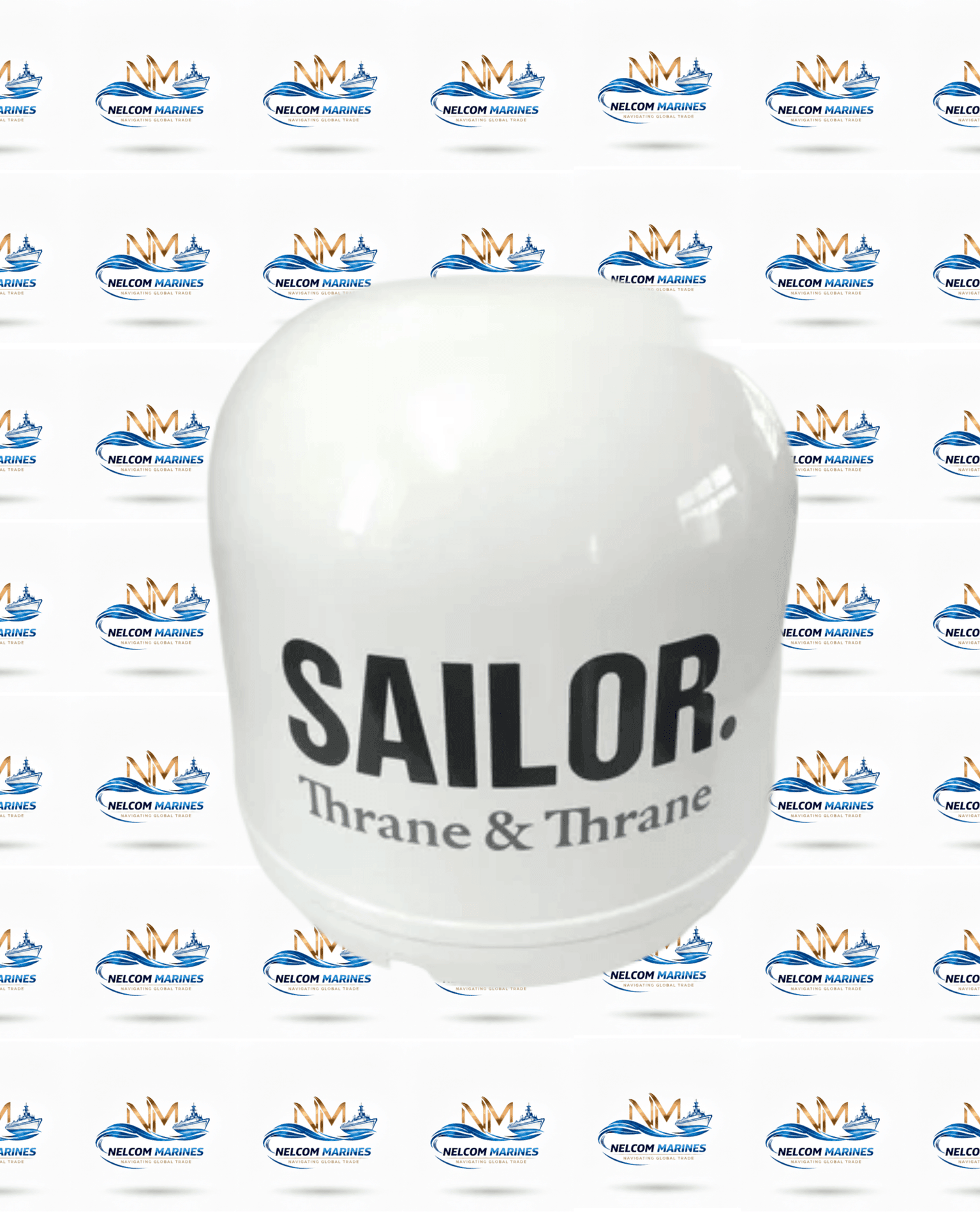

PRE OWNED SAILOR TT-3050C DOM SAILOR TT-3050C DOM MARINE ANTENA

PRODUCT OVERVIEW

The Sailor TT-3050C is a compact, stabilized tracking antenna designed for high-quality global satellite connectivity. Despite its small size, it features a sophisticated mechanical tracking system that maintains a constant link with Inmarsat satellites, even on small vessels subject to rapid motion and high-speed maneuvers.

Optimized for the Inmarsat L-band network, the TT-3050C provides simultaneous voice and data services. It is the primary antenna for the FleetBroadband 150 system (offering speeds up to 150 kbps) and the Fleet One system (offering up to 100 kbps). Its lightweight design allows for easy installation on the mast or a dedicated pole without requiring heavy-duty mounting hardware.

TECHNICAL SPECIFICATIONS

-- Model: Sailor TT-3050C (Cobham / Thrane & Thrane)

-- System Compatibility: Sailor FBB 150 / Sailor Fleet One

-- Antenna Type: Stabilized tracking antenna (Inmarsat L-band)

-- Data Rate (FBB 150): Up to 150 kbps

-- Data Rate (Fleet One): Up to 100 kbps

-- Voice Services: 4 kbps AMBE+2

-- Transmit Frequency: 1626.5 MHz to 1660.5 MHz

-- Receive Frequency: 1525.0 MHz to 1559.0 MHz

-- Power Supply: 10.5V to 32V DC (via BDU)

-- Operating Temperature: -25C to +55C

-- Radome Material: UV-stabilized thermo-plastic

-- Antenna Dimensions: 275 mm (Height) x 291 mm (Diameter)

-- Antenna Weight: 3.9 kg (Ultra-lightweight)

-- Interface: Single N-Type (Female) 50 Ohm connector

KEY FEATURES & APPLICATIONS

-- Simultaneous Voice & Data: Allows the crew to browse the internet, check weather charts, and send emails while simultaneously making a high-quality satellite voice call.

-- Compact Mechanical Tracking: Features a highly responsive motor system that ensures uninterrupted service even in rough sea states and high-speed turns.

-- Flexible Airtime Support: Fully compatible with both the standard FleetBroadband 150 service and the cost-effective Fleet One coastal/global plans.

-- Simple Installation: Uses a single coaxial cable to carry DC power and all satellite data, significantly reducing cable-run complexity on the mast.

-- Integrated GPS: Provides independent positioning data used for both satellite tracking and vessel location reporting.

-- Rugged Protection: The IPX6-rated radome is built to endure extreme salt spray, humidity, and intense UV exposure common in tropical maritime environments.

TYPICAL CONDITION (USED/REFURBISHED)

Our refurbished TT-3050C units from ship-recycling yards undergo a comprehensive multi-point inspection. We perform a motor calibration test to ensure the azimuth and elevation tracking is smooth and silent. We verify the "Lock-on" time to the Inmarsat satellite and test the GPS signal strength. Each unit is physically cleaned, the radome is polished, and the moisture seal is replaced if necessary to ensure it is ready for immediate deployment.

COMPATIBLE BRAND MODELS:

Sailor / Thrane & Thrane (TT-3739A BDU, TT-3050A, TT-3050B, Sailor 250, Sailor 500), Furuno (FELCOM 250, FELCOM 500), JRC (JUE-250, JUE-251, JUE-500), Cobham (Sailor 6110), Intellian (FB150, FB250), Samyung (SBB-150, SBB-250).
